Wiper Seal Catalog (Dust & Scraper Seals)

Dust and scraper seals for hydraulic and pneumatic cylinders. Excludes dirt, dust, and moisture from the system with standard cross-section dimensions and engineering catalog specs.

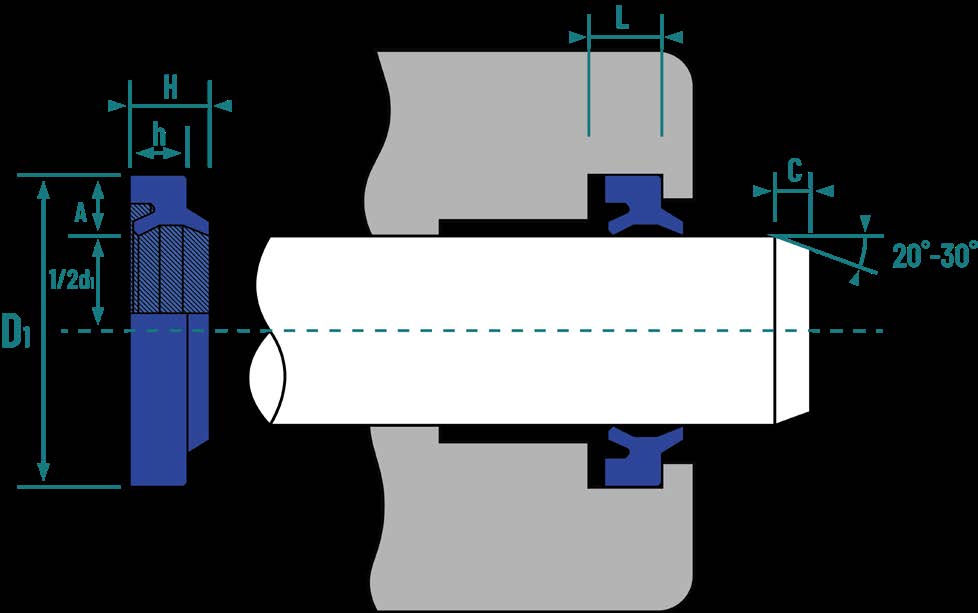

Model DHS

Wiper Seal Model DHS

Material: TPU, 95 SHORE A

Working Temp: -35˚C ~ +100˚C

Speed: ≤ 1m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 269 sizes
8 × 13 × 3/4.5
9 × 13 × 3/4.2
9 × 14 × 3.4/5
10 × 14 × 2.8/3.8
10 × 15 × 3.8/6.4
10 × 20 × 4/8
11.2 × 19.2 × 4.5/6
12 × 16 × 3/4
12 × 17 × 3.2/4.2
12 × 18 × 2.5/5
12 × 18 × 3.6/4.8
12 × 18 × 3.8/4.8
12 × 18 × 3.8/6.4
12 × 18 × 3.9/6
12 × 20 × 4.5/6
12.5 × 20.5 × 4.5/6
13 × 20 × 5/6.5
14 × 22 × 4.5/6
15 × 22 × 3.5/5.5
15 × 23 × 4.5/6
16 × 20 × 3.8/4.6
16 × 22 × 3.6/4.8
16 × 22 × 3.8/6
16 × 22 × 8/10
16 × 24 × 4.5/6
16 × 26 × 7/9.5
18 × 24 × 3.6/4.8
18 × 26 × 4.5/6
18 × 26 × 4/7
18 × 28 × 4/8
18.5 × 26 × 3.2/4
19 × 26 × 2.5/4
19 × 27 × 4.5/6
19 × 28 × 4.5/6
19.05 × 29.05 × 5.3/7
20 × 26 × 3.6/4.6
20 × 26 × 3.6/5
20 × 26 × 3/6
20 × 26 × 6/8
20 × 28 × 4.5/6
20 × 28 × 5/6.5
20 × 30 × 7/10
20 × 32 × 5/10
20 × 35 × 4
22 × 30 × 4.5/6
22 × 33.8 × 3/5
22.4 × 30.4 × 4.5/6
23.5 × 31.5 × 4.5/6
24 × 32 × 4.5/6
25 × 30 × 4.5/6
25 × 31 × 3.6/5
25 × 31 × 4/6
25 × 31 × 5/7
25 × 33 × 4.5/6
25 × 35 × 5.3/7
25 × 36.8 × 5/8
25.4 × 34.93 × 4.3/6.8
26 × 32 × 2.5/4.2
26 × 32 × 4.2/6
26 × 34 × 4.5/6
27 × 35 × 4.5/6
28 × 36 × 4.5/5.8
28 × 36 × 4.5/6
28 × 36 × 4/7
28 × 39.8 × 4.5/6
28 × 40 × 5/10
29 × 40 × 5/6.5
30 × 38 × 4.5/5.8
30 × 38 × 4.5/6
30 × 38 × 5/6.5
30 × 38 × 4/7
30 × 40 × 5/6.5
31.5 × 39.5 × 5/6.5
31.5 × 41.5 × 4.5/6
31.5 × 41.5 × 5/6.5
31.75 × 41.275 × 5.38
31.75 × 41.28 × 5.35/8.38
31.75 × 41.28 × 5.5/7.5
32 × 40 × 4.5/5.8
32 × 40 × 5/6.5
32 × 40 × 5/7.5
32 × 40 × 6/9
32 × 40 × 5/8
32 × 41 × 6/9
32 × 43.8 × 5/6.5
34.925 × 44.45 × 4.76
35 × 43 × 4.5/6
35 × 43 × 5/5.6
35 × 43 × 5/6.5
35 × 43 × 4/7
35 × 43 × 5/7
35 × 43 × 5/9.5
35 × 43 × 5.8/8
35 × 45 × 4.6/8
35 × 45 × 5/7
35 × 45 × 5/10
35 × 45 × 8/12
35.5 × 43.5 × 5/6.5
36 × 44 × 4.5/5.8
36 × 44 × 5/6.5
38 × 46 × 5/6.5
38 × 48 × 4.5/6
38.1 × 47.625 × 5.5/7.5
40 × 30 × 10/7
40 × 48 × 4.5/5.8
40 × 48 × 4.5/6
40 × 48 × 5/6.5
40 × 48 × 5/7.5
40 × 48 × 5/9.5
40 × 48 × 5.8/8
40 × 48 × 6.5/11
40 × 50 × 10/7
41.28 × 50.8 × 4.76/7.5
42 × 50 × 4/7
42 × 51 × 4.5/6
43 × 51 × 5/6.5
44.45 × 53.98 × 4.75
44.5 × 54 × 5.5/7.3
45 × 53 × 4.5/5.8
45 × 53 × 4.5/7
45 × 53 × 5/6.5
45 × 53 × 5.8/8
45 × 54 × 5/6.5
45 × 55 × 5/6.8
45 × 57 × 5/9
46 × 54 × 4.5/5.8
46.5 × 54.5 × 5/6.5
47 × 57 × 7/10
48 × 56 × 5/6.5
48 × 65 × 5/6.5
48 × 65 × 6.5/11
50 × 58 × 4.5/6
50 × 58 × 5/6.5
50 × 58 × 5/7
50 × 58 × 5.8/8
50 × 63.5 × 7/10
50.8 × 60.33 × 5.5/7.2
51 × 60 × 5.5/7.5
52 × 62 × 5/6
52.8 × 58.4 × 4.5
53 × 61 × 5/6.5
53 × 61 × 5/7
55 × 63 × 5/6.5
55 × 65 × 5/7
55 × 65 × 5/8
55 × 65 × 6/8
56 × 64 × 5/6.5
56 × 66 × 6/8
57 × 67 × 5/6
57.15 × 69.85 × 6.35/9.53
58 × 66 × 5/6.5
60 × 68 × 5/6.5
60 × 68 × 6/7.5
60 × 70 × 5.3/7.3
60 × 70 × 6/8
60 × 73 × 7/10
63 × 71 × 5/6.5
63.5 × 71.5 × 5
63.5 × 76.2 × 6.35/9.53
65 × 73 × 5/6.5
66 × 74 × 4.5/6.5
67 × 75 × 5/6.5
68 × 81 × 6.5/11
70 × 78 × 4/7
70 × 79 × 7/10
70 × 80 × 5/8
70 × 80 × 6/8
71 × 81 × 6/8
75 × 85 × 6/8
76.2 × 88.9 × 6.35/9.53
76.2 × 89.54 × 6.5/12.2
80 × 88 × 4/7
80 × 90 × 5/8
80 × 90 × 6/8
80 × 93 × 7/10
82.55 × 95.25 × 6.35/9.53
84 × 99 × 6.5/11
85 × 95 × 6/8
85 × 98 × 6/9
86 × 97.5 × 7/10
88 × 98 × 6/8
90 × 98 × 5/8
90 × 100 × 6/8
92 × 105 × 7/10
95 × 105 × 6/8
98 × 108 × 6/8
98 × 113 × 6/9
100 × 110 × 5/7
100 × 110 × 6/8
100 × 112 × 7/10
100 × 112 × 8/10
100 × 112 × 7/11
100 × 115 × 6/8.5
101.6 × 114.3 × 7/10
101.6 × 114.94 × 6.5/12.2
105 × 115 × 6/8
105 × 118 × 6/8
110 × 120 × 6/8
110 × 123 × 6/9
110 × 125 × 6/9
112 × 122 × 6/8
115 × 125 × 6/8
118 × 128 × 6/8
120 × 130 × 5/7
120 × 130 × 7/10
120 × 130 × 6/8
120 × 132.2 × 7.2/12
124 × 139 × 6/9
125 × 135 × 6/8
125 × 137 × 8/10
125 × 138 × 7/9.5
125 × 139.5 × 8.5/12
125 × 140 × 6/8.5
127 × 140 × 6.5/12.2
130 × 140 × 7/9.5
130 × 143 × 7/9.5
135 × 148 × 6/9
136 × 149 × 7/9.5
140 × 150 × 7/9.5
140 × 153 × 7/9.5
140 × 160 × 8/16
141 × 151 × 5/7
145 × 155 × 7/10
145 × 158 × 7/9.5
149 × 164 × 6/9
150 × 162 × 8/10
150 × 164 × 7/9.5
150 × 165 × 6/8.5
150 × 165 × 6/9
150 × 168.5 × 9/14
155 × 165 × 7/9.5
160 × 170 × 7/9.5
160 × 173 × 6/9
160 × 174 × 7/9.5
160 × 175 × 8.5/12
162 × 172 × 5/7
162 × 175 × 6/9
165 × 179 × 7/9.5
170 × 184 × 7/9.5
177 × 192 × 6/9
180 × 190 × 6.8/7.6
180 × 192 × 9/12
180 × 193 × 7/9.5
180 × 194 × 7/9.5
180 × 195 × 6/8.5
180 × 195 × 6/9
180 × 195 × 6.5/11
180 × 198.5 × 9/14
185 × 195 × 7/9.5
187 × 200 × 7/9.5
200 × 214 × 7/9.5
204 × 218 × 7/9.5
207 × 217 × 5/7
210 × 220 × 7/10
210 × 223 × 7/9.5
210 × 223 × 7.5/10.5
212 × 226 × 7/9.5
210 × 226 × 12
220 × 234 × 7/9.5
230 × 244 × 7/9.5
250 × 264 × 7/9.5
265 × 280 × 7/9.5
280 × 294 × 9/11.5
330 × 350 × 10/14
345 × 365 × 10/15
400 × 420 × 10/18
420 × 455 × 24
475 × 495 × 10/15
720 × 750 × 18/27

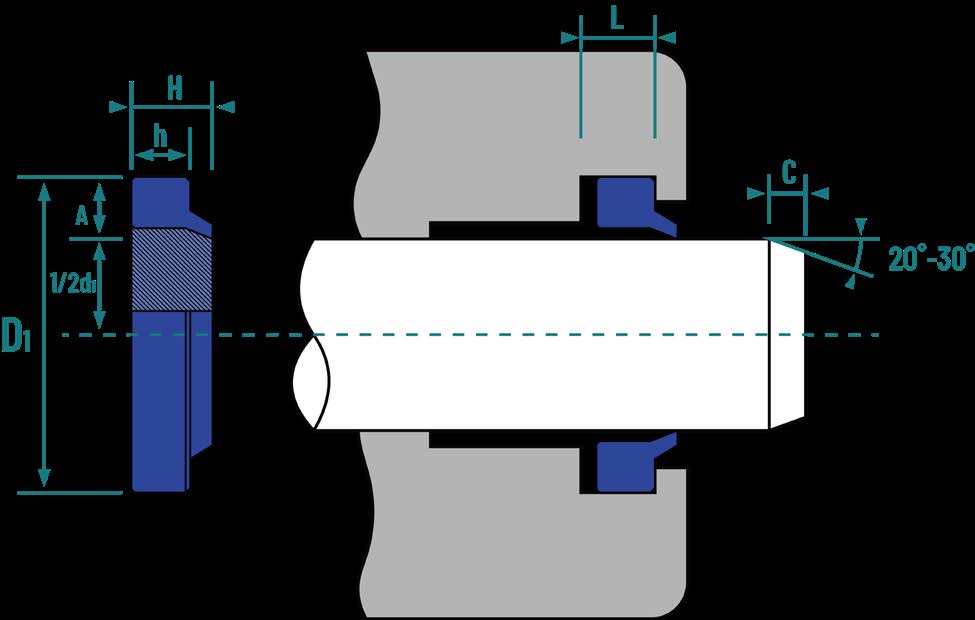

Model JA

Wiper Seal Model JA

Material: TPU, 95 SHORE A

Working Temp: -35˚C ~ +100˚C

Speed: ≤ 1m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 69 sizes
18 × 28 × 5/9
20 × 30 × 5/9
22 × 32 × 5/9
25 × 35 × 5/9
28 × 38 × 5/9
30 × 40 × 6/10
32 × 42 × 6/10
35 × 45 × 6/10
40 × 50 × 6/10
45 × 55 × 6/10
50 × 60 × 6/10
55 × 67 × 6/10
60 × 72 × 6/10
63 × 75 × 6/10
65 × 77 × 6/10
70 × 82 × 6/10
75 × 87 × 6/11
80 × 92 × 7/11
85 × 97 × 7/11
90 × 102 × 7/11
95 × 107 × 7/11
100 × 112 × 7/11
105 × 117 × 8/12
110 × 124 × 8/12
115 × 129 × 8/12
120 × 134 × 8/12
125 × 139 × 8/12
130 × 144 × 9/14
135 × 149 × 9/14
140 × 158 × 9/14
145 × 163 × 9/14
150 × 168 × 9/14
155 × 173 × 9/14
160 × 178 × 9/14
165 × 183 × 9/14
170 × 188 × 9/14
175 × 193 × 9/14
180 × 198 × 9/14
185 × 203 × 9/14
190 × 208 × 9/14
195 × 213 × 9/14
200 × 218 × 9/14
205 × 225 × 7/13
210 × 230 × 7/13
215 × 235 × 7/13
220 × 240 × 7/13
225 × 245 × 7/13
230 × 250 × 7/13
235 × 255 × 7/13
240 × 260 × 7/13
245 × 265 × 7/13
250 × 270 × 7/13
255 × 275 × 7/13
260 × 280 × 7/13
265 × 285 × 7/13
270 × 290 × 7/13
275 × 295 × 7/13
280 × 300 × 7/13
285 × 305 × 7/13
290 × 310 × 7/13
295 × 315 × 7/13
300 × 320 × 7/13
310 × 340 × 10/20
320 × 350 × 10/20
330 × 360 × 10/20
340 × 370 × 10/20
350 × 380 × 10/20
360 × 390 × 10/20
380 × 410 × 10/20

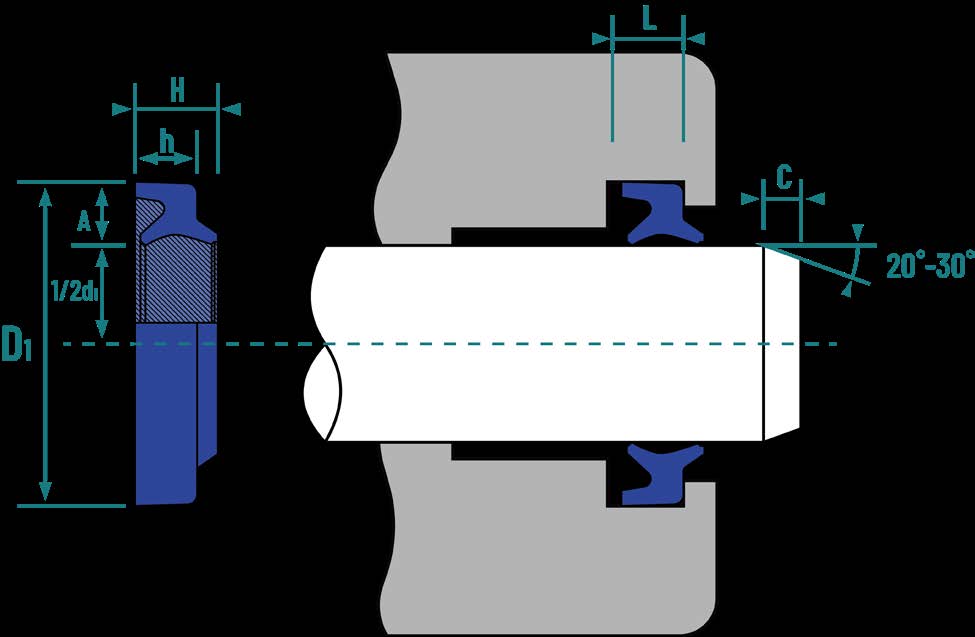

Model LBI

Wiper Seal Model LBI

Material: TPU, 95 SHORE A

Working Temp: -35˚C ~ +100˚C

Speed: ≤ 1m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 42 sizes
11.2 × 19.2 × 4.5/6
12 × 20 × 4.5/6
12.5 × 20.5 × 4.5/6
14 × 22 × 4.5/6
16 × 24 × 4.5/6
18 × 26 × 4.5/6
20 × 28 × 4.5/6
22 × 30 × 4.5/6
22.4 × 30.4 × 4.5/6
25 × 33 × 4.5/6
26 × 34 × 4.5/6
28 × 36 × 4.5/6
30 × 38 × 5/6.5
31.5 × 39.5 × 5/6.5
32 × 40 × 5/6.5
34 × 42 × 5/6.5
35 × 43 × 5/6.5
35.5 × 43.5 × 5/6.5
38 × 46 × 5/6.5
40 × 48 × 5/6.5
45 × 53 × 5/6.5
46 × 54 × 5/6.5
48 × 56 × 5/6.5
50 × 58 × 5/6.5
53 × 61 × 5/6.5
55 × 63 × 5/6.5
56 × 64 × 5/6.5
58 × 66 × 5/6.5
60 × 68 × 5/6.5
63 × 71 × 5/6.5
65 × 73 × 5/6.5
67 × 75 × 5/6.5
70 × 80 × 6/8
71 × 81 × 6/8
75 × 85 × 6/8
80 × 90 × 6/8
85 × 95 × 6/8
90 × 100 × 6/8
95 × 105 × 6/8
98 × 108 × 6/8
100 × 110 × 6/8
105 × 120 × 6/8

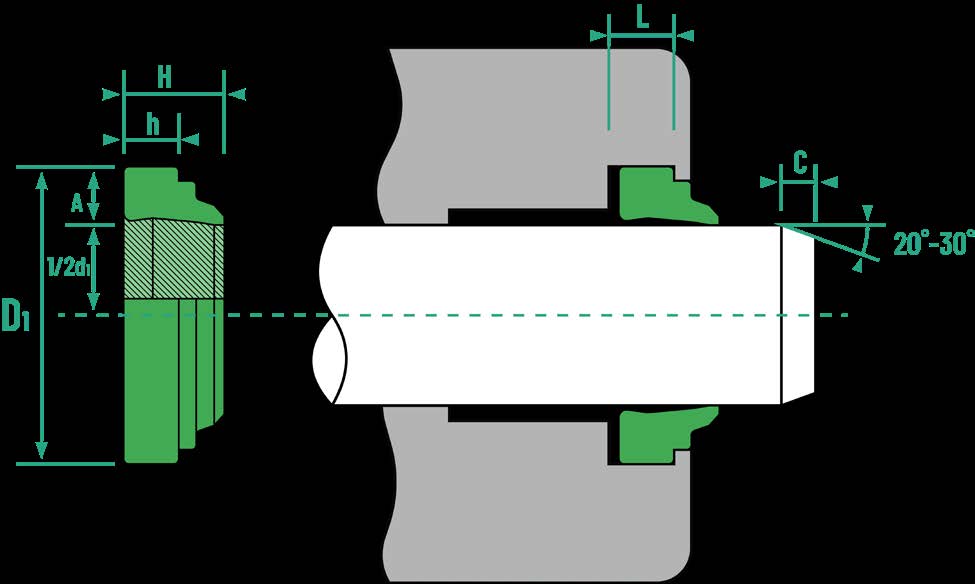

Model A1

Wiper Seal Model A1

Material: TPU, 95 SHORE A

Working Temp: -35˚C ~ +100˚C

Speed: ≤ 2m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 64 sizes
12 × 20 × 4/7
14 × 22 × 4/7
15 × 23 × 4/7
16 × 24 × 4/7
18 × 26 × 4/7
20 × 28 × 4/7
22 × 30 × 4/7
25 × 33 × 4/7
26 × 34 × 4/7
28 × 36 × 4/7
30 × 38 × 4/7
32 × 40 × 4/7
35 × 43 × 4/7
36 × 44 × 4/7
38 × 46 × 4/7
40 × 48 × 4/7
42 × 50 × 4/7
45 × 53 × 4/7
46 × 54 × 4/7
48 × 56 × 4/7
49 × 56 × 4/7
50 × 58 × 4/7
50 × 62 × 5.5/10
55 × 63 × 4/7
56 × 64 × 4/7
60 × 68 × 4/7
62 × 70 × 4/7
63 × 71 × 4/7
65 × 73 × 4/7
70 × 78 × 4/7
70 × 82 × 5.5/10
75 × 83 × 4/7
78 × 86 × 4/7
80 × 88 × 4/7
80 × 92 × 5.5/10
85 × 93 × 4/7
90 × 98 × 4/7
90 × 102 × 5.5/10
95 × 103 × 4/7
97 × 105 × 4/7
100 × 108 × 4/7
105 × 117 × 5.5/10
110 × 122 × 5.5/10
120 × 132 × 5.5/10
125 × 137 × 5.5/10
128 × 140 × 5.5/10
130 × 142 × 5.5/10
140 × 152 × 5.5/10
145 × 157 × 5.5/10
150 × 162 × 5.5/10
160 × 172 × 5.5/10
166 × 178 × 5.5/10
170 × 182 × 5.5/10
180 × 192 × 5.5/10
190 × 202 × 5.5/10
200 × 212 × 5.5/10
220 × 235 × 6.5/13
230 × 245 × 6.5/13
240 × 255 × 6.5/13
260 × 275 × 6.5/13
270 × 285 × 6.5/13
275 × 290 × 6.5/13
290 × 305 × 6.5/13
370 × 385 × 6.5/13

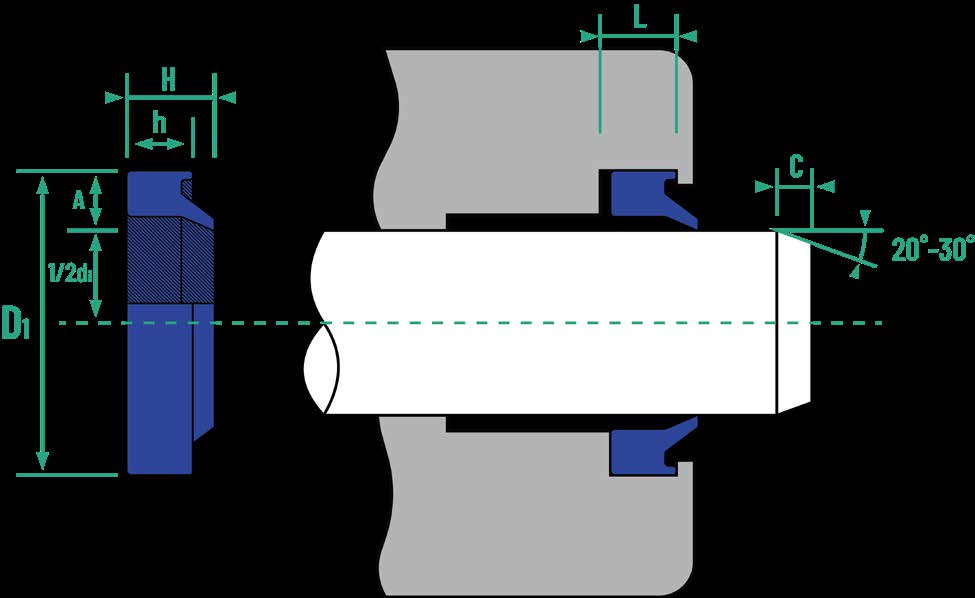

Model PW, GHK

Wiper Seal Model PW, GHK

Material: TPU, 95 SHORE A

Working Temp: -35˚C ~ +100˚C

Speed: ≤ 0.8m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 59 sizes
12 × 18 × 3.8
14 × 20 × 3.8
16 × 22 × 3/4
16 × 22.6 × 3.8/5.3
18 × 24.6 × 3.8/5.3
18 × 26.6 × 5/7
18 × 28 × 5/7
19 × 25 × 3/4.5
20 × 28.6 × 5.3/7
22 × 30.6 × 5.3/7
25 × 33.6 × 5.3/7
28 × 36.6 × 5.3/7
30 × 38 × 5/7
30 × 38.6 × 5.3
31.5 × 39.5 × 5/6.5
32 × 40.6 × 5.3/7
35 × 43.6 × 5.3/7
36 × 44 × 4/7
36 × 44.6 × 5.3/7
38 × 46 × 5/7
40 × 48 × 4/7
40 × 48.6 × 5.3
40 × 50 × 5/7
42 × 50 × 5/7
45 × 53.6 × 5.3/7
45 × 55 × 5/7
50 × 58 × 4/7
50 × 60 × 5/7
50 × 58.6 × 5.3
55 × 63.6 × 5.3
55 × 65.5 × 5.3
56 × 64.6 × 5.3
56 × 66 × 5/7
60 × 68.6 × 5.3
60 × 70.6 × 5.3/7
63 × 71.6 × 5.3
65 × 73 × 5/7
63 × 73.6 × 5.3
65 × 75.6 × 5.3/7
70 × 78.6 × 5.3
70 × 80.6 × 5.3
70 × 82 × 7/12
75 × 83.6 × 5.3/7
75 × 87 × 7/12
80 × 88.6 × 5.3
80 × 90 × 5/7
80 × 92.2 × 7.1/10
85 × 93 × 5/7
85 × 97 × 7/12
90 × 98.6 × 5.3
90 × 100 × 7/10
90 × 102 × 7/10
95 × 107 × 7/12
100 × 112.2 × 7.1/10
110 × 126 × 8.7/12
115 × 126 × 6/8
125 × 137.2 × 7.1/10
145 × 157.2 × 7.1/10
160 × 175.2 × 10.1/14

Model AY

Wiper Seal Model AY

Material: TPU, 95 SHORE A

Working Temp: -35˚C ~ +100˚C

Speed: ≤ 2m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 28 sizes
10 × 16 × 3.6/4.8
12 × 18 × 3.6/4.8
14 × 20 × 3.6/4.8
16 × 22 × 3.6/4.8
18 × 24 × 3.6/4.8
20 × 26 × 3.6/4.8
22 × 28 × 3.6/4.8
25 × 31 × 3.6/4.8
28 × 36 × 4.5/5.8
30 × 38 × 4.5/5.8
32 × 40 × 4.5/5.8
36 × 44 × 4.5/5.8
40 × 48 × 4.5/5.8
45 × 53 × 4.5/5.8
50 × 58 × 4.5/5.8
55 × 65 × 5.3/6.8
60 × 70 × 5.3/6.8
63 × 73 × 5.3/6.8
65 × 75 × 5.3/6.8
70 × 80 × 5.3/6.8
75 × 85 × 5.3/6.8
80 × 90 × 5.3/6.8
85 × 95 × 5.3/6.8
90 × 100 × 5.3/6.8
100 × 110 × 5.3/6.8
110 × 125 × 7.5/9.5
125 × 140 × 7.5/9.5
140 × 155 × 7.5/9.5

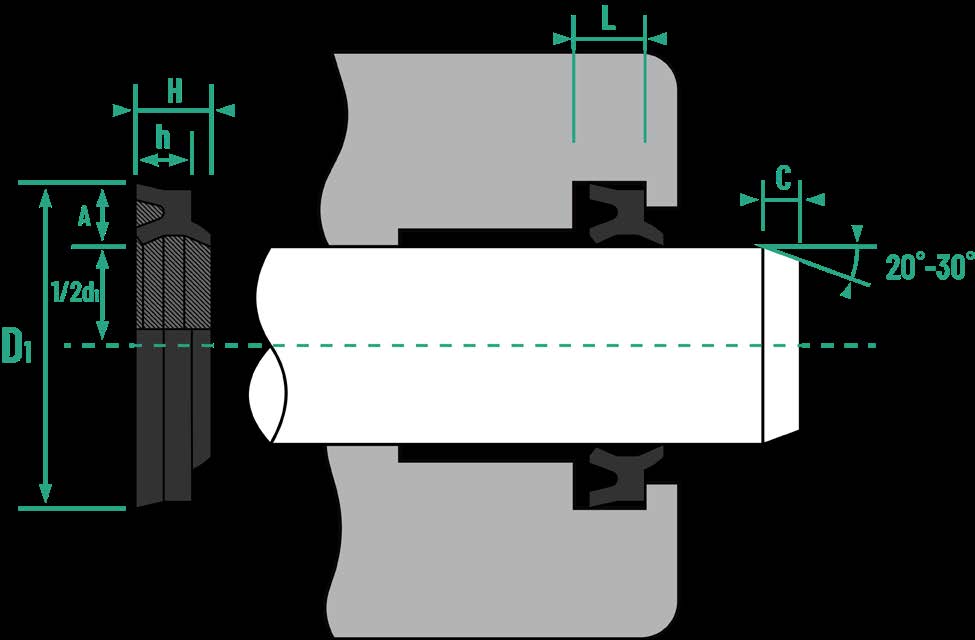

Model LBH

Wiper Seal Model LBH

Material: NBR/FKM, 82 SHORE A

Working Temp: -35˚C ~ +100˚C

Speed: ≤ 2m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 59 sizes
11.2 × 19.2 × 6
12 × 20 × 6
12.5 × 20.5 × 6
14 × 22 × 6
16 × 24 × 6
18 × 26 × 6
20 × 28 × 6
22 × 30 × 6
22.4 × 30.4 × 6
23.5 × 31.5 × 6
25 × 33 × 6
26 × 34 × 6
28 × 36 × 6
30 × 38 × 6
31.5 × 39.5 × 6.5
32 × 40 × 6.5
34 × 42 × 6.5
35 × 43 × 6.5
35.5 × 43.5 × 6.5
38 × 46 × 6.5
40 × 48 × 6.5
45 × 53 × 6.5
48 × 56 × 6.5
50 × 58 × 6.5
53 × 61 × 6.5
55 × 63 × 6.5
56 × 64 × 6.5
58 × 66 × 6.5
60 × 68 × 6.5
63 × 71 × 6.5
65 × 73 × 6.5
67 × 75 × 6.5
70 × 80 × 6.5
71 × 81 × 8
75 × 85 × 8
80 × 90 × 8
85 × 95 × 8
90 × 100 × 8
95 × 105 × 8
98 × 108 × 8
100 × 110 × 8
105 × 115 × 8
110 × 120 × 8
112 × 122 × 8
115 × 125 × 8
120 × 130 × 9.5
120 × 135 × 9.5
125 × 138 × 9.5
136 × 149 × 9.5
140 × 153 × 9.5
145 × 158 × 9.5
150 × 163 × 9.5
160 × 173 × 9.5
165 × 179 × 9.5
180 × 194 × 9.5
200 × 214 × 9.5
204 × 218 × 9.5
220 × 234 × 9.5
230 × 244 × 9.5

Model FA

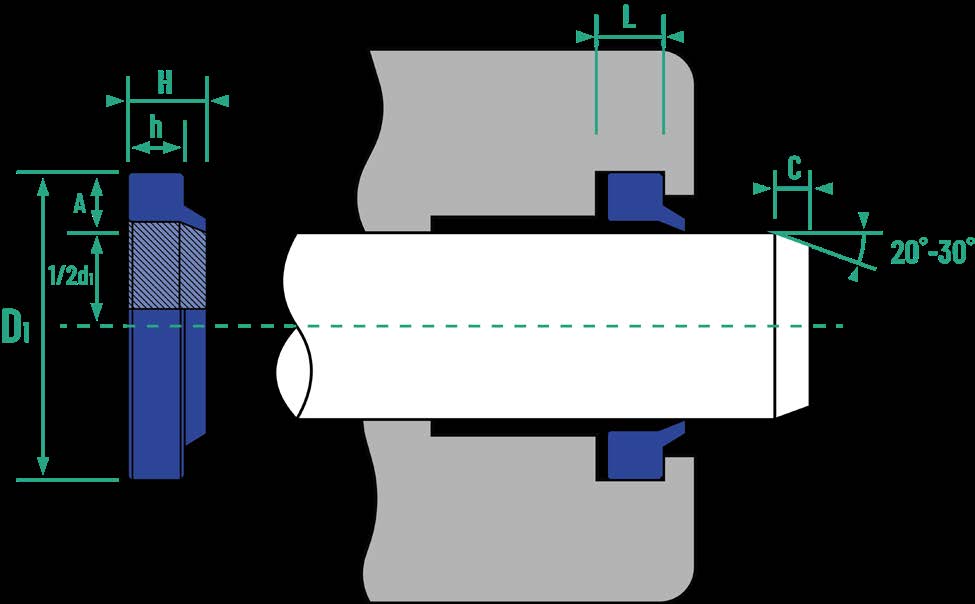

Wiper Seal Model FA

Material: TPU/NBR/FKM, 82 to 95 SHORE A

Working Temp: -35˚C ~ +200˚C

Speed: ≤ 2m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 82 sizes
8 × 18 × 4/7
10 × 20 × 4/7
12 × 24 × 5/9
14 × 26 × 5/9
16 × 28 × 5/9
18 × 26 × 5/9
18 × 28 × 5/9
18 × 30 × 5/9
20 × 28 × 5/9
20 × 32 × 5/9
22 × 34 × 5/9
25 × 33 × 5/9
25 × 37 × 5/9
28 × 40 × 5/9
30 × 42 × 5/9
32 × 40 × 6.5
34 × 42 × 6.5
35 × 43 × 6.5
32 × 40 × 6/11
32 × 44 × 5/9
35 × 47 × 5/9
36 × 44 × 6/11
36 × 48 × 5/9
38 × 50 × 5/9
40 × 52 × 5/9
40 × 49 × 6/11
45 × 54 × 6/11
45 × 57 × 5/9
50 × 62 × 5/9
52 × 64 × 5/9
55 × 69 × 6/11
60 × 74 × 6/11
63 × 77 × 6/11
65 × 79 × 6/11
70 × 84 × 6/11
75 × 89 × 6/11
80 × 94 × 6/11
87 × 101 × 6/11
85 × 99 × 6/11
90 × 104 × 6/11
92 × 106 × 6/11
95 × 109 × 6/11
100 × 114 × 6/11
105 × 121 × 7/13
110 × 126 × 7/13
115 × 131 × 7/13
120 × 136 × 7/13
125 × 141 × 7/13
130 × 146 × 7/13
135 × 151 × 7/13
140 × 160 × 7/13
145 × 161 × 7/13
150 × 170 × 7/13
155 × 175 × 7/13
160 × 180 × 7/13
170 × 190 × 7/13
175 × 195 × 7/13
180 × 195 × 7/13
185 × 205 × 7/13
190 × 210 × 7/13
195 × 215 × 7/13
200 × 220 × 7/13
205 × 225 × 7/13
210 × 230 × 7/13
215 × 235 × 7/13
220 × 240 × 7/13
225 × 245 × 7/13
230 × 250 × 7/13
235 × 255 × 7/13
240 × 260 × 7/13
245 × 265 × 7/13
250 × 270 × 7/13
255 × 275 × 7/13
260 × 280 × 7/13
265 × 285 × 7/13
270 × 290 × 7/13
275 × 295 × 7/13
280 × 300 × 7/13
285 × 305 × 7/13
290 × 310 × 7/13
295 × 315 × 7/13
300 × 320 × 7/13

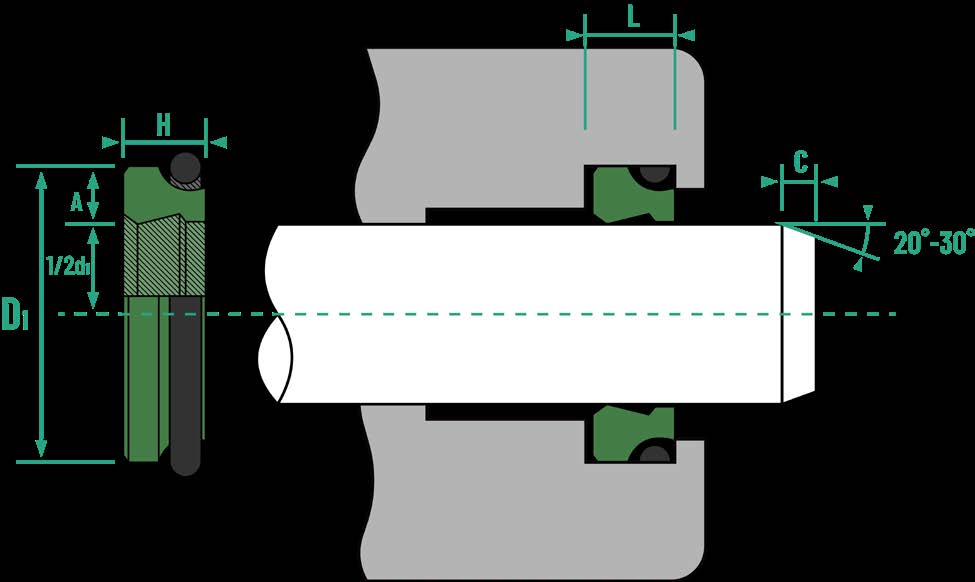

Model AL5

Wiper Seal Model AL5

Material: PTFE+Bronze/NBR & FKM, 85 SHORE A

Working Temp: -35˚C ~ +200˚C

Speed: ≤ 2m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 0 sizes

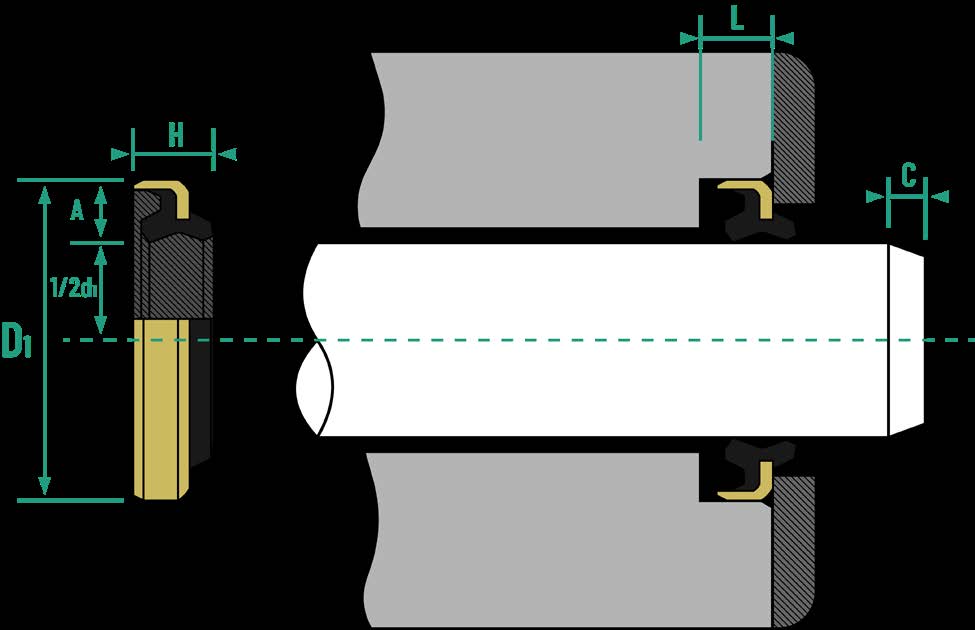

Model DKB

Wiper Seal Model DKB

Material: Metar + NBR, 85 SHORE A

Working Temp: -35C ~ +120˚C

Speed: ≤ 2m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 57 sizes
8 × 18 × 4/7
18 × 30 × 6/9
19 × 31 × 6/9
20 × 32 × 6/9
22 × 34 × 6/9
25 × 37 × 6/9
28 × 40 × 6/9
30 × 42 × 6/9
30 × 47 × 7/10
32 × 44 × 7/10
32 × 52 × 8/11
35 × 47 × 7/10
36 × 48 × 7/10
38 × 50 × 7/10
40 × 52 × 7/10
45 × 57 × 7/10
50 × 62 × 7/10
50 × 72 × 8/11
55 × 69 × 8/11
58 × 70 × 8/11
60 × 74 × 8/11
60 × 82 × 11/14
63 × 77 × 8/11
65 × 79 × 8/11
70 × 84 × 8/11
75 × 89 × 8/11
80 × 94 × 8/11
85 × 99 × 8/11
90 × 104 × 8/11
95 × 109 × 8/11
100 × 114 × 8/11
105 × 121 × 9/12
110 × 126 × 9/12
112 × 128 × 9/12
115 × 131 × 9/12
120 × 136 × 9/12
125 × 141 × 9/12
130 × 146 × 9/12
135 × 155 × 10/14
140 × 160 × 10/14
145 × 165 × 10/14
150 × 170 × 10/14
155 × 175 × 10/14
160 × 180 × 10/14
170 × 190 × 10/14
175 × 195 × 10/14
180 × 205 × 12/17
190 × 215 × 12
200 × 225 × 12/17
210 × 230 × 12/17
210 × 235 × 12/17
220 × 245 × 12/17
225 × 250 × 12/17
230 × 255 × 12/17
240 × 265 × 12/17
250 × 275 × 12/17
260 × 285 × 12/17

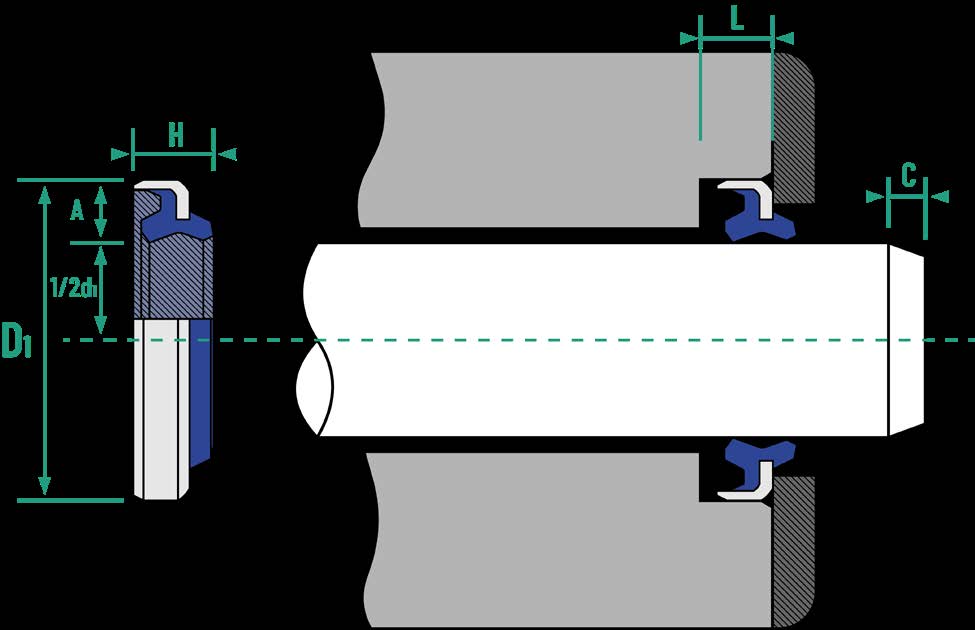

Model DKBI

Wiper Seal Model DKBI

Material: Metar + TPU, 95 SHORE A

Working Temp: -35C ~ +90˚C

Speed: ≤ 2m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 35 sizes
20 × 32 × 6/9
22 × 34 × 6/9
25 × 35 × 5/8
25 × 37 × 6/9
28 × 40 × 6/9
30 × 42 × 6/9
32 × 44 × 7/10
35 × 47 × 7/10
40 × 52 × 7/10
45 × 57 × 7/10
50 × 62 × 7/10
50 × 72 × 8/11
55 × 69 × 8/11
60 × 74 × 8/11
63 × 77 × 8/11
65 × 79 × 8/11
70 × 84 × 8/11
75 × 89 × 8/11
80 × 94 × 8/11
85 × 99 × 8/11
90 × 104 × 8/11
95 × 109 × 8/11
100 × 114 × 8/11
105 × 121 × 9/12
110 × 126 × 9/12
115 × 131 × 9/12
120 × 136 × 9/12
125 × 141 × 9/12
130 × 146 × 9/12
135 × 150 × 10/14
135 × 155 × 10/14
140 × 160 × 10/14
150 × 170 × 10/14
160 × 180 × 10/14
170 × 190 × 10/14

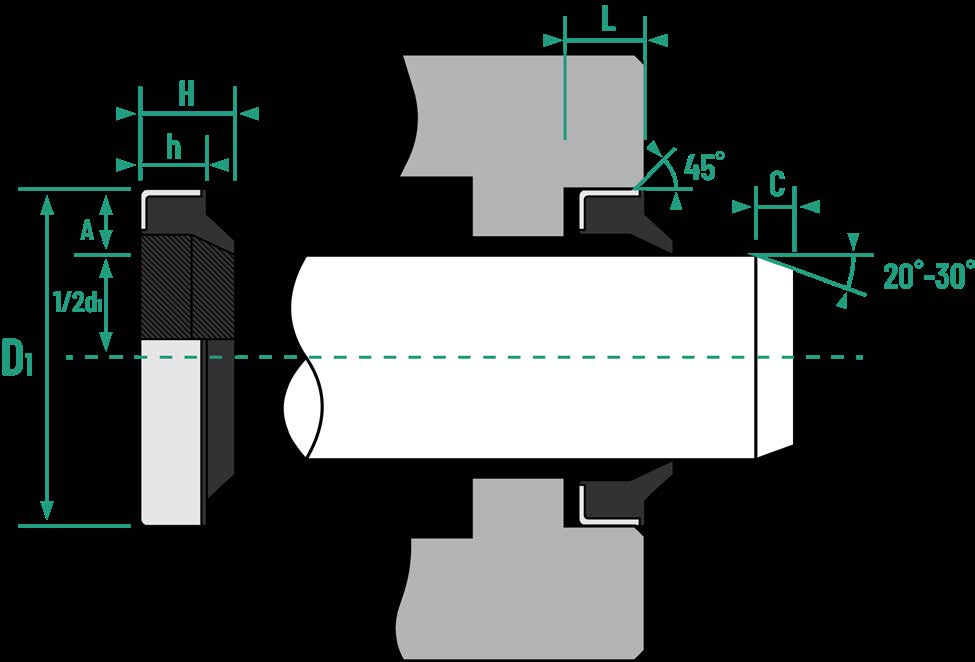

Model GA

Wiper Seal Model GA

Material: Metal + NBR, 80 SHORE A

Working Temp: -35˚C ~ +90˚C

Speed: ≤ 2m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 134 sizes
10 × 16 × 3.5/5
10 × 18 × 5/8
12 × 18 × 4/6
12 × 20 × 4/6
12 × 22 × 5/8
15 × 21 × 3.5
15 × 25 × 5/8
15 × 25 × 7/10
16 × 22 × 4/6
16 × 24 × 5/8
16 × 26 × 5/8
16 × 26 × 7/10
16 × 28 × 5/8
18 × 26 × 5/7
18 × 28 × 5/7
18 × 28 × 7/10
18 × 32 × 5/9
20 × 26 × 4/7
20 × 28 × 5/8
20 × 30 × 5/8
20 × 30 × 7/10
20 × 32 × 7/10
22 × 28 × 5/8
22 × 30 × 5/7
22 × 32 × 5/8
22 × 32 × 7/10
25 × 32 × 5/7
25 × 33 × 5/7
25 × 35 × 5/8
25 × 35 × 7/10
26 × 34 × 5/8
28 × 36 × 5/7
28 × 38 × 5/8
28 × 38 × 7/10
28 × 40 × 7/10
30 × 40 × 4/6
30 × 40 × 5/8
30 × 40 × 7/10
32 × 40 × 4/7
32 × 40 × 7/10
32 × 42 × 5/7
32 × 42 × 7/10
32 × 45 × 4/8
32 × 45 × 5/8
32 × 45 × 7/10
35 × 45 × 5/8
35 × 45 × 7/10
36 × 45 × 5/7
36 × 45 × 7/10
36 × 46 × 5/8
36 × 46 × 7/10
36 × 48 × 5/8
37 × 47 × 5/8
38 × 48 × 5/8
38 × 48 × 7/10
38 × 53 × 5/8
40 × 48 × 5/7
40 × 50 × 5/8
40 × 50 × 7/10
40 × 52 × 5/8
40 × 52 × 7/10
42 × 50 × 7/10
42 × 52 × 7/10
45 × 53 × 5/7
45 × 55 × 5/7
45 × 55 × 7/10
45 × 57 × 7/10
45 × 58 × 7/10
45 × 60 × 7/10
48 × 60 × 7/10
50 × 56 × 5/7
50 × 58 × 5/7
50 × 60 × 5/7
50 × 65 × 7/10
52 × 62 × 7/10
55 × 63 × 5/7
55 × 63 × 7/10
55 × 65 × 5/7
55 × 65 × 7/10
55 × 68 × 7/10
55 × 70 × 7/10
56 × 66 × 5/7
56 × 66 × 7/10
60 × 70 × 5/7
60 × 70 × 7/10
60 × 75 × 7/10
63 × 73 × 5/7
63 × 73 × 7/10
63 × 75 × 7/10
65 × 75 × 7/10
70 × 80 × 5/7
70 × 80 × 7/10
70 × 85 × 7/10
72 × 82 × 7/10
75 × 83 × 7/10
75 × 85 × 7/10
75 × 90 × 7/10
80 × 88 × 5/7
80 × 88 × 7/10
80 × 90 × 7/10
80 × 95 × 7/10
85 × 95 × 7/10
90 × 100 × 7/10
90 × 105 × 7/10
95 × 105 × 7/10
100 × 110 × 7/10
100 × 115 × 9/12
105 × 115 × 7/10
110 × 120 × 7/10
110 × 125 × 9/12
115 × 125 × 7/10
120 × 130 × 7/10
120 × 135 × 9/12
125 × 135 × 7/10
125 × 140 × 6/12
130 × 140 × 7/10
130 × 145 × 9/12
135 × 150 × 9/12
140 × 155 × 9/12
145 × 160 × 9/12
150 × 165 × 9/12
160 × 175 × 10/14
170 × 185 × 10/14
180 × 195 × 10/14
185 × 200 × 10/14
190 × 202 × 9/12
200 × 220 × 12/16
210 × 230 × 12/16
220 × 240 × 12/16
240 × 260 × 12/16
250 × 270 × 12/16
260 × 280 × 12/16
270 × 290 × 12/16
280 × 300 × 12/16

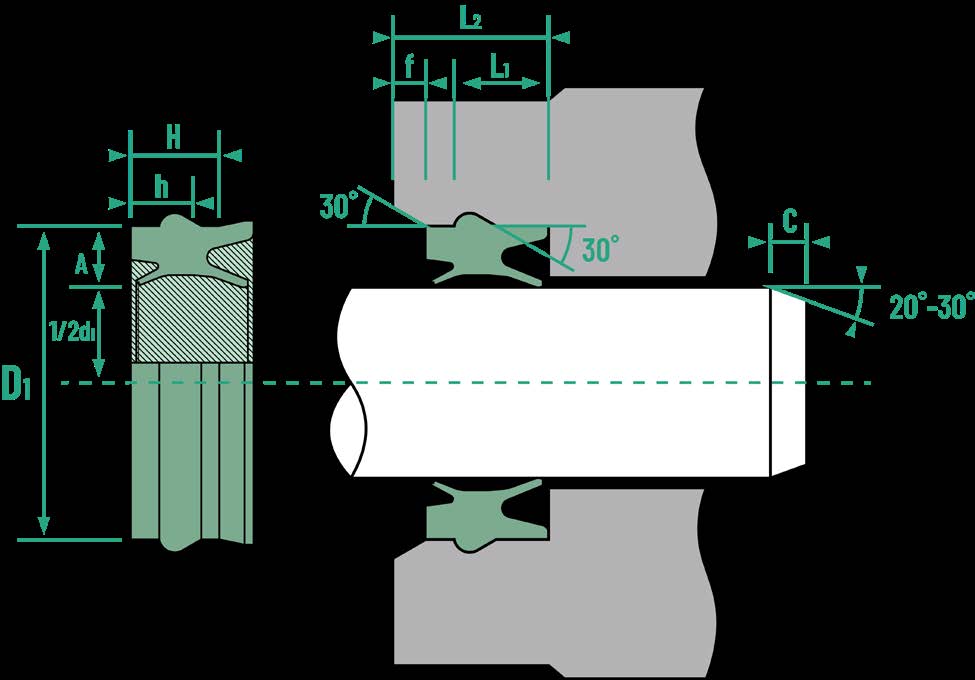

Model EU

Wiper Seal Model EU

Material: TPU, 90 SHORE A

Working Temp: -35˚C ~ +90˚C

Speed: ≤ 1m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 18 sizes
12 × 19 × 10
12 × 20 × 10.7
12 × 22 × 10.7
14 × 24 × 10.7
16 × 26 × 10.7
18 × 26 × 10.7
18 × 28 × 10.7
20 × 30 × 10.7
22 × 32 × 11.2
25 × 35 × 11.2
25 × 35 × 11.7
30 × 40 × 11.2
32 × 42 × 11.2
36 × 44 × 11.2
40 × 50 × 11.2
45 × 55 × 12.2
50 × 60 × 12.2
63 × 75 × 13

Model PDU

Wiper Seal Model PDU

Material: NBR, 75 SHORE A

Working Temp: -20˚C ~ +80˚C

Speed: ≤ 1m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 35 sizes
4 × 8 × 4.5/5.5
5 × 10 × 4/5
6 × 10 × 3/4.4
8 × 12 × 3.5/4.9
8 × 14 × 4.5/5.5
10 × 14 × 3.5/4.9
10 × 16 × 4/5.5
12 × 16 × 3.5/4.9
12 × 17 × 3.5/5
12 × 18 × 4/5.3
12 × 22 × 5/6.5
14 × 18 × 3.5/4.9
14 × 20 × 4.5/6
16 × 22 × 5/6.5
16 × 24 × 5.5/7.5
20 × 24 × 3.5/4.7
20 × 26 × 5.5/7.5
20 × 28 × 5.5/7.5
20 × 30 × 6/7.5
22 × 28 × 5.5/7
22 × 30 × 5.5/7.5
25 × 33 × 5.5/7.5
26 × 36 × 5.9/7.3
30 × 38 × 6.5/8.5
30 × 40 × 6.5/8.5
32 × 38 × 5/6.5
32 × 42 × 6.5/8.5
35 × 45 × 6.5/8.5
36 × 46 × 6.5/8.5
40 × 50 × 6.5/8.5
45 × 55 × 6.5/8.5
50 × 60 × 6.5/8.5
55 × 65 × 6.5/8.5
60 × 70 × 6.5/8.5
70 × 80 × 6.5/8.5

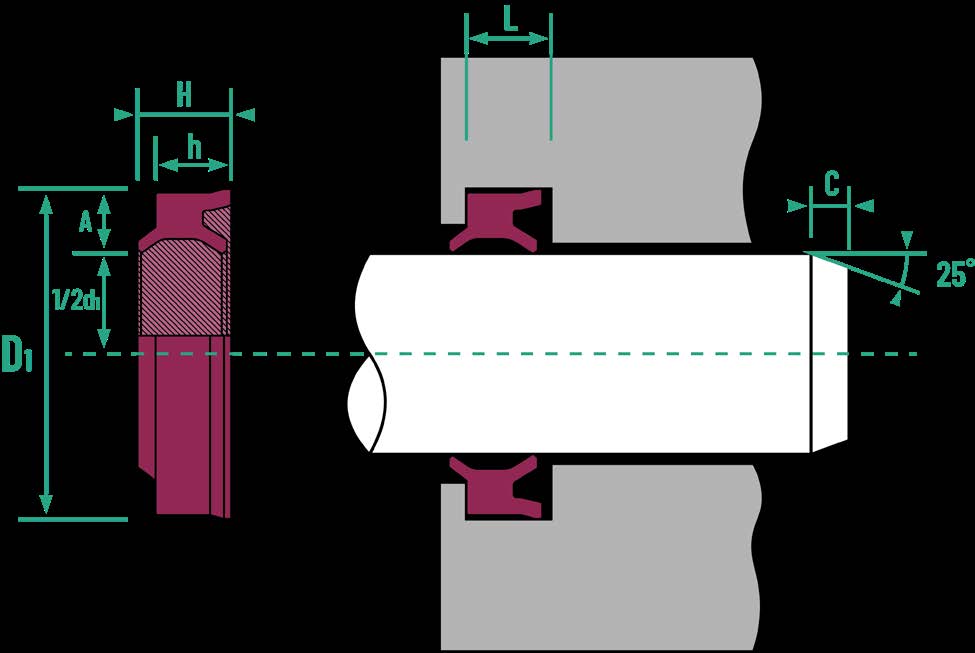

Model EM

Wiper Seal Model EM

Material: TPU, 90 SHORE A

Working Temp: -30˚C ~ +80˚C

Speed: ≤ 1m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 10 sizes
5 × 8 × 2.8
6 × 9 × 2.8
8 × 11.5 × 3.2
10 × 14 × 3.7
12 × 16.5 × 4
16 × 20.5 × 4
20 × 25 × 4.6
25 × 30 × 4.6
32 × 37.5 × 5
40 × 46 × 5

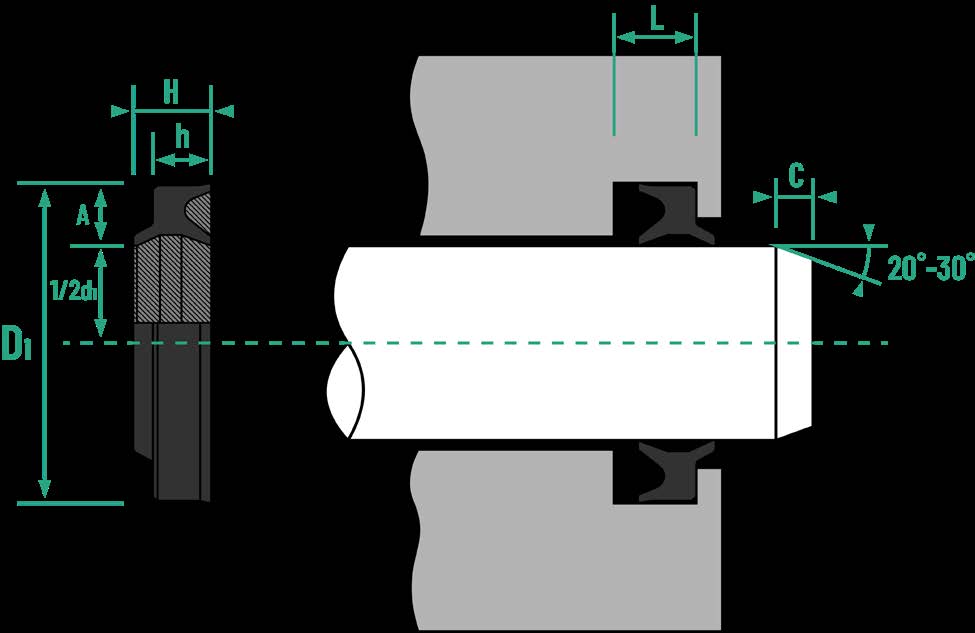

Model ZHM

Wiper Seal Model ZHM

Material: NBR, 75 SHORE A

Working Temp: -20˚C ~ +80˚C

Speed: ≤ 1m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 0 sizes

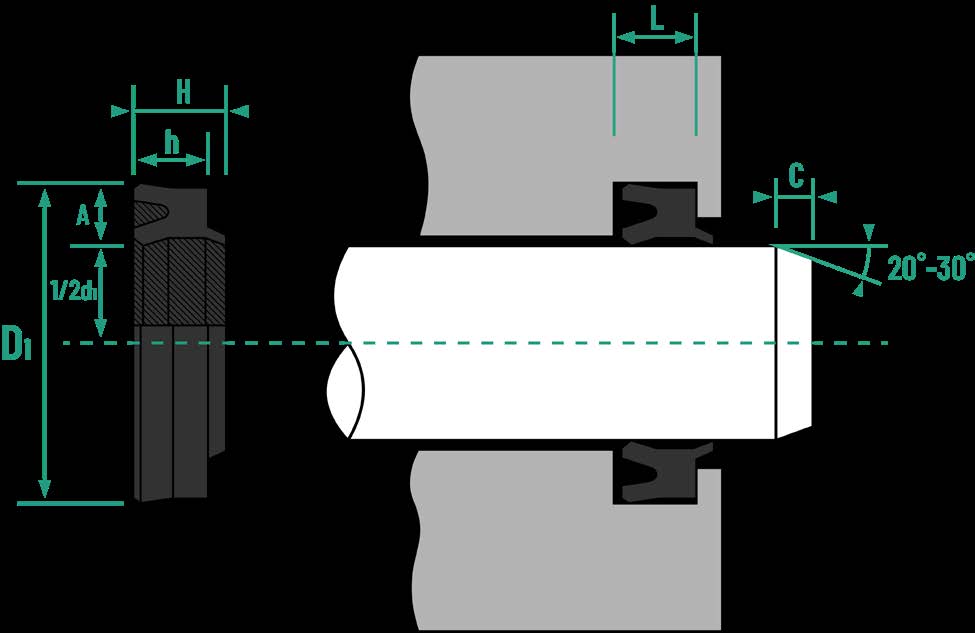

Model FC-2

Wiper Seal Model FC-2

Material: NBR/FKM, 75 SHORE A

Working Temp: -20˚C ~ +200˚C

Speed: ≤ 1m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 11 sizes
6 × 9 × 2.3/3.1
8 × 11.5 × 2.8/3.5
10 × 14 × 3.3/4
12 × 16 × 3.5/4
12 × 18.5 × 3.3/4
16 × 21 × 3.3/4
16 × 22.5 × 3.3/4
25 × 30 × 4/4.9
20 × 27 × 3.7/4.5
25 × 32 × 3.7/4.5
32 × 37.5 × 4.1/5

Model E8

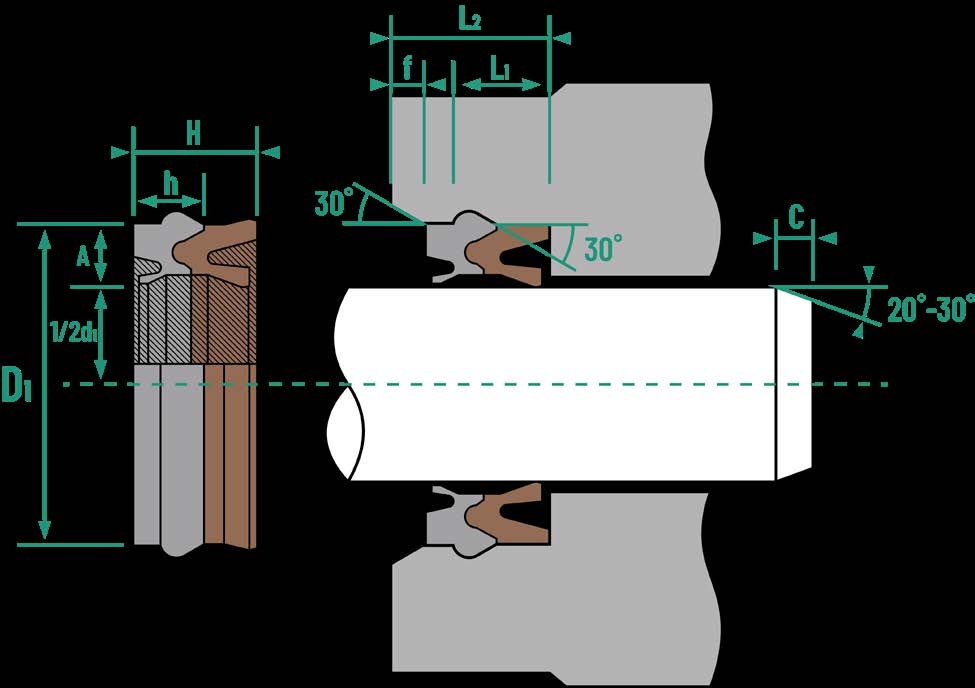

Wiper Seal Model E8

Material: SCOPE OF APPLICATION

Working Temp: -20˚C ~ +200˚C

Speed: ≤ 1m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 0 sizes

Model EL

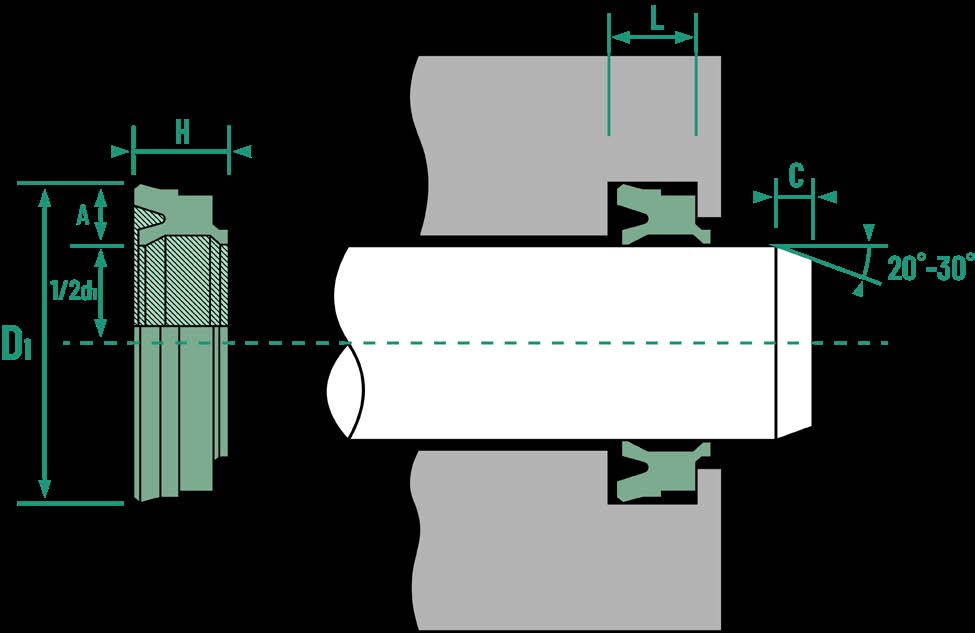

Wiper Seal Model EL

Material: SCOPE OF APPLICATION

Working Temp: -20˚C ~ +200˚C

Speed: ≤ 1m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 12 sizes
4 × 8.1 × 3/4
6 × 11.1 × 3.6/5
8 × 14.1 × 3.6/5
10 × 16.1 × 4.2/6
12 × 18.1 × 4.2/6
12 × 19 × 4.8
16 × 23 × 4.8
20 × 28 × 5.6/7.5
16 × 24 × 4/7.5
20 × 29 × 6.8
25 × 33 × 5.6/7.5
25 × 34 × 6.8

Model DRP

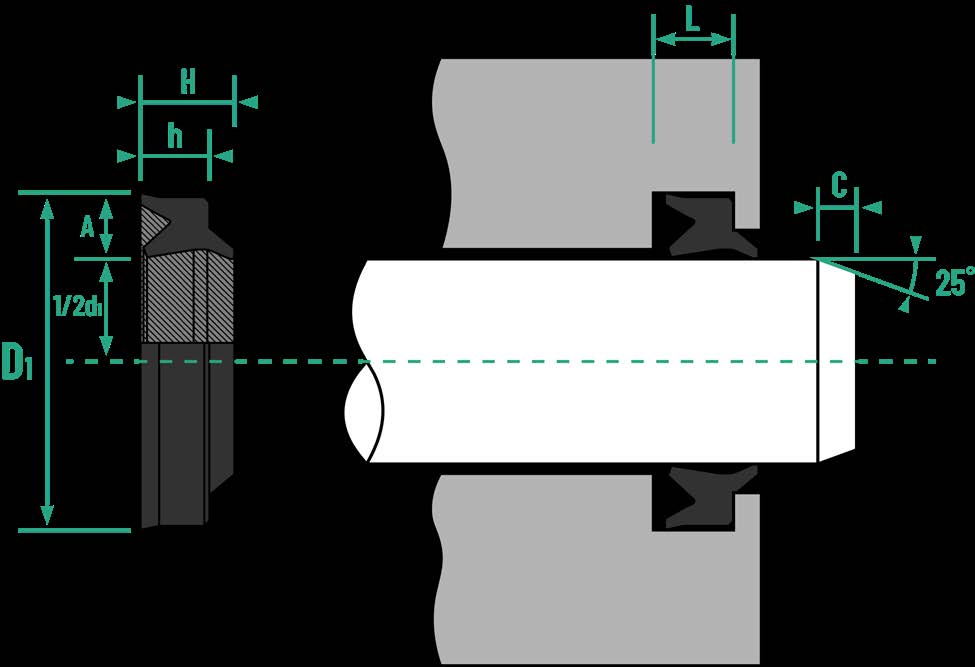

Wiper Seal Model DRP

Material: TPU, 95 SHORE A

Working Temp: -30˚C ~ +80˚C

Speed: Reciprocating ≤ 0.8m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 0 sizes

Model Guide Strip

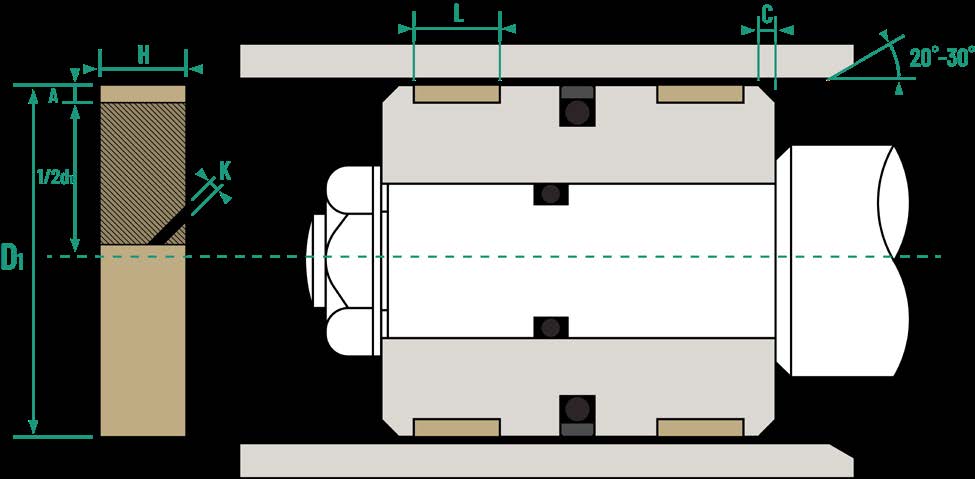

Wiper Seal Model Guide Strip

Material: NBR, 80 SHORE A

Working Temp: -30˚C ~ +80˚C (NBR)

Speed: Reciprocating ≤ 0.8m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 0 sizes

Model WR

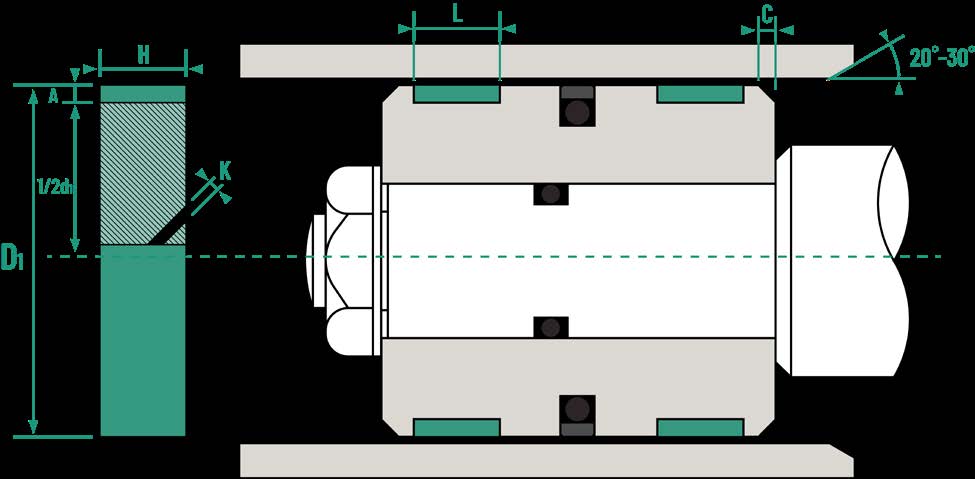

Wiper Seal Model WR

Material: PTFE/Bronze & Phenolic , 90 SHORE A

Working Temp: -40˚C ~ +120˚C

Speed: ≤ 1m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 63 sizes
3 × 1.5
4 × 1.5
5 × 1.5
6 × 1.5
8 × 1.5
10 × 1.5
12 × 1.5
20 × 1.5
15 × 1.5
25 × 1.5
3 × 2
4 × 2
5 × 2
6 × 2
8 × 2
10 × 2
12 × 2
15 × 2
20 × 2
25 × 2
30 × 2
4 × 2.5
5 × 2.5
6 × 2.5
7 × 2.5
8 × 2.5
9 × 2.5
10 × 2.5
12 × 2.5
15 × 2.5
20 × 2.5
25 × 2.5
30 × 2.5
35 × 2.5
40 × 2.5
50 × 2.5
6 × 3
8 × 3
10 × 3
12 × 3
15 × 3
20 × 3
25 × 3
30 × 3
35 × 3
40 × 3
50 × 3
8 × 4
10 × 4
12 × 4
15 × 4
20 × 4
25 × 4
30 × 4
35 × 4
40 × 4
50 × 4
15 × 5
20 × 5
25 × 5
30 × 5
40 × 5
50 × 5

Model FAI-WR

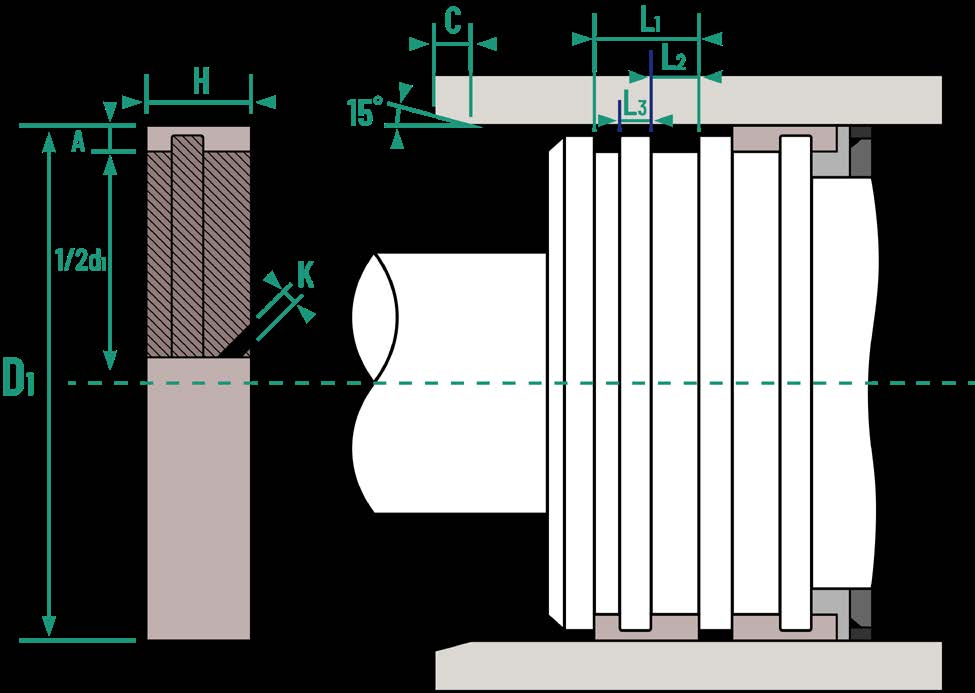

Wiper Seal Model FAI-WR

Material: PTFE / POM / Phenolic / PTFE + Bronze,

Working Temp: -35˚C ~ +200˚C

Speed: ≤ 15m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 302 sizes
40 × 35 × 6.3
40 × 35 × 8
40 × 35 × 8.1
40 × 35 × 9.5
40 × 35 × 10
40 × 35 × 15
45 × 40 × 6.3
45 × 40 × 9.7
45 × 40 × 8.1
45 × 40 × 10
45 × 40 × 15
45 × 40 × 20
50 × 45 × 5.5
50 × 45 × 15
50 × 45 × 20
50 × 45 × 25
50 × 45 × 6.3
50 × 45 × 8.1
50 × 45 × 9.7
55 × 50 × 10
55 × 50 × 15
55 × 50 × 20
55 × 50 × 5.6
55 × 50 × 8.1
55 × 50 × 9.7
60 × 54 × 15
60 × 54 × 25
60 × 54 × 6
60 × 55 × 10
60 × 55 × 15
60 × 55 × 20
60 × 55 × 6.3
60 × 55 × 8
60 × 55 × 9.5
60 × 55 × 9.7
63 × 58 × 10
63 × 58 × 15
63 × 58 × 20
63 × 58 × 5.6
63 × 58 × 6.3
63 × 58 × 8.1
63 × 58 × 9.5
65 × 60 × 10
65 × 60 × 15
65 × 60 × 20
65 × 60 × 6.3
65 × 60 × 8.1
65 × 60 × 9.5
65 × 60 × 9.7
68 × 63 × 10
68 × 63 × 15
68 × 63 × 20
68 × 63 × 9.5
68 × 63 × 9.7
70 × 64 × 12
70 × 64 × 20
70 × 64 × 25
70 × 65 × 10
70 × 65 × 15
70 × 65 × 20
70 × 65 × 6
70 × 65 × 6.3
70 × 65 × 9.5
70 × 65 × 9.7
75 × 70 × 10
75 × 70 × 15
75 × 70 × 20
75 × 70 × 25
75 × 70 × 6.3
75 × 70 × 8.1
75 × 70 × 9.5
75 × 70 × 9.7
80 × 75 × 5.6
80 × 75 × 10
80 × 75 × 12
80 × 75 × 15
80 × 75 × 20
80 × 75 × 6
80 × 75 × 6.3
80 × 75 × 8.1
80 × 75 × 9.5
80 × 75 × 9.7
85 × 77 × 15
85 × 79 × 12.5
85 × 79 × 15
85 × 79 × 20
85 × 80 × 10
85 × 80 × 15
85 × 80 × 20
85 × 80 × 25
85 × 80 × 6.3
85 × 80 × 8.1
85 × 80 × 9.5
85 × 80 × 9.7
90 × 85 × 10
90 × 85 × 15
90 × 85 × 20
90 × 85 × 25
90 × 85 × 6
90 × 85 × 8.1
90 × 85 × 9.5
90 × 85 × 9.7
95 × 86 × 9.5
95 × 86 × 9.7
95 × 86 × 12.5
95 × 87 × 15
95 × 89 × 12.5
95 × 89 × 15
95 × 89 × 20
95 × 89 × 25
95 × 90 × 15
95 × 90 × 20
95 × 90 × 25
95 × 90 × 6
95 × 90 × 8.1
95 × 90 × 9.5
95 × 90 × 9.7
100 × 95 × 6.3
100 × 95 × 8.1
100 × 95 × 9.5
100 × 95 × 9.7
100 × 95 × 10
100 × 95 × 15
100 × 95 × 20
100 × 95 × 25
100 × 95 × 30
105 × 100 × 6.3
105 × 100 × 8.1
105 × 100 × 9.5
105 × 100 × 9.7
105 × 100 × 10
105 × 100 × 15
105 × 100 × 20
105 × 100 × 25
105 × 100 × 30
105 × 96 × 9.5
105 × 96 × 9.7
105 × 96 × 12.5
105 × 97 × 15
105 × 99 × 15
105 × 99 × 25
110 × 104 × 6
110 × 104 × 10
110 × 104 × 12.5
110 × 104 × 15
110 × 104 × 20
110 × 104 × 22
110 × 104 × 25
110 × 104 × 30
110 × 105 × 6
110 × 105 × 8.1
110 × 105 × 9.5
110 × 105 × 9.7
110 × 105 × 10
110 × 105 × 15
110 × 105 × 20
110 × 105 × 25
110 × 105 × 30
115 × 106 × 9.5
115 × 106 × 9.7
115 × 106 × 15
115 × 107 × 15
115 × 109 × 15
115 × 110 × 8.1
115 × 110 × 9.5
115 × 110 × 9.7
115 × 110 × 10
115 × 110 × 15
115 × 110 × 20
115 × 110 × 25
115 × 110 × 30
120 × 111 × 9.5
120 × 111 × 9.7
120 × 111 × 15
120 × 114 × 6
120 × 114 × 15
120 × 114 × 22
120 × 114 × 30
120 × 114 × 35
120 × 115 × 8.1
120 × 115 × 9.5
120 × 115 × 9.7
120 × 115 × 10
120 × 115 × 15
120 × 115 × 20
125 × 119 × 9.5
125 × 119 × 9.7
125 × 120 × 5.6
125 × 120 × 8.1
125 × 120 × 9.5
125 × 120 × 9.7
125 × 120 × 10
125 × 120 × 15
125 × 120 × 20
125 × 120 × 25
125 × 120 × 30
130 × 120 × 9.5
130 × 120 × 9.7
130 × 123 × 15
130 × 123 × 20
130 × 123 × 30
130 × 125 × 8.1
130 × 125 × 9.5
130 × 125 × 9.7
130 × 125 × 10
130 × 125 × 15
130 × 125 × 20
130 × 125 × 25
130 × 125 × 30
135 × 130 × 8
135 × 130 × 9.5
135 × 130 × 9.7
135 × 130 × 10
135 × 130 × 15
135 × 130 × 20
135 × 130 × 25
140 × 135 × 8
140 × 135 × 9.5
140 × 135 × 9.7
140 × 135 × 10
140 × 135 × 15
140 × 135 × 20
140 × 135 × 25
145 × 140 × 8
145 × 140 × 9.5
145 × 140 × 9.7
145 × 140 × 15
145 × 140 × 20
150 × 145 × 8
150 × 145 × 9.5
150 × 145 × 9.7
150 × 145 × 15
150 × 145 × 20
150 × 145 × 25
150 × 145 × 30
155 × 150 × 9.5
155 × 150 × 15
155 × 150 × 20
155 × 150 × 25
160 × 148 × 15
160 × 148 × 20
160 × 153 × 15
160 × 153 × 20
160 × 153 × 35
160 × 153 × 40
160 × 153 × 45
160 × 155 × 9.5
160 × 155 × 9.7
160 × 155 × 15
160 × 155 × 20
160 × 155 × 25
165 × 157 × 15
165 × 157 × 25
165 × 159 × 30
165 × 160 × 9.5
165 × 160 × 15
165 × 160 × 20
165 × 160 × 25
170 × 158 × 20
170 × 162 × 15
170 × 162 × 20
170 × 162 × 25
170 × 162 × 50
170 × 164 × 9.5
170 × 164 × 9.7
170 × 165 × 9.5
170 × 165 × 9.7
170 × 165 × 15
170 × 165 × 20
170 × 175 × 20
175 × 170 × 15
175 × 170 × 25
180 × 172 × 15
180 × 172 × 45
180 × 174 × 15
180 × 174 × 20
180 × 175 × 15
180 × 175 × 20
180 × 175 × 25
185 × 180 × 15
185 × 180 × 20
185 × 180 × 25
190 × 185 × 15
190 × 185 × 20
190 × 185 × 25
195 × 190 × 15
195 × 190 × 20
195 × 190 × 25
200 × 192 × 45
200 × 195 × 15
200 × 195 × 20
200 × 195 × 25
200 × 195 × 30
205 × 200 × 15
205 × 200 × 20
205 × 200 × 25
210 × 205 × 15
210 × 205 × 25
220 × 215 × 20
220 × 215 × 25
225 × 220 × 20
225 × 220 × 25

Model WP6

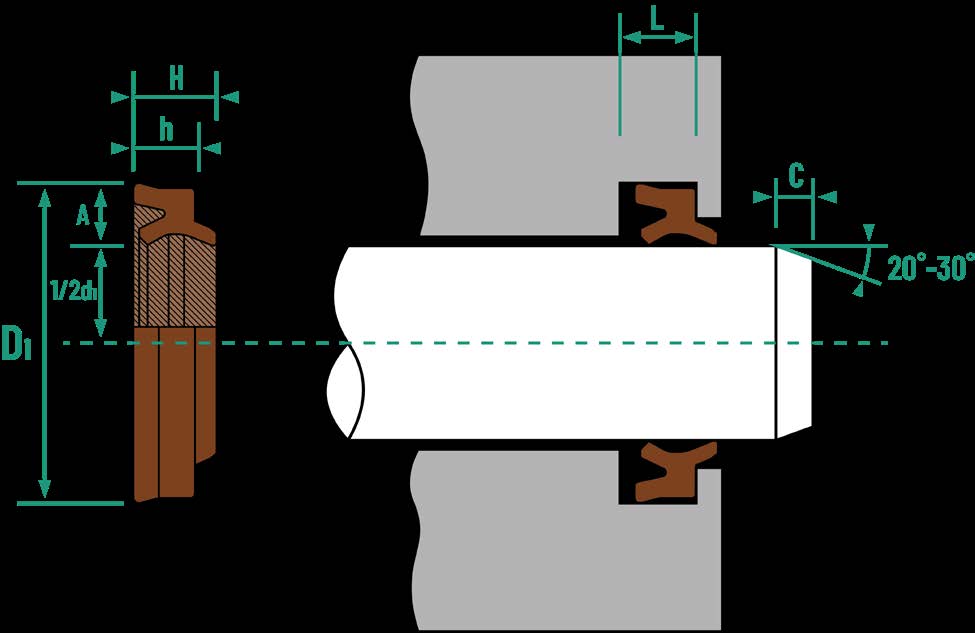

Wiper Seal Model WP6

Material: PTFE / POM / Phenolic / PTFE + Bronze,

Working Temp: -35˚C ~ +200˚C

Speed: ≤ 15m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 42 sizes
40 × 32 × 12
50 × 42 × 12
56 × 48 × 12
63 × 55 × 12
70 × 62 × 12
80 × 72 × 14
100 × 92 × 10.6
120 × 112 × 14
100 × 92 × 14
125 × 115 × 17.5
140 × 130 × 17.5
155 × 145 × 17.5
160 × 150 × 17.5
170 × 160 × 20
180 × 170 × 20
180 × 170 × 24
190 × 180 × 20
200 × 190 × 20
210 × 200 × 25
220 × 210 × 25
225 × 215 × 24
250 × 240 × 33
260 × 250 × 33
265 × 255 × 3
270 × 260 × 33
275 × 265 × 27.5
275 × 265 × 33
280 × 270 × 33
300 × 290 × 33
320 × 308 × 35
340 × 328 × 35
350 × 338 × 35
360 × 348 × 35
380 × 368 × 35
400 × 388 × 35
420 × 408 × 35
430 × 418 × 35
440 × 428 × 35
450 × 438 × 35
492 × 480 × 35
560 × 548 × 35
700 × 688 × 35

Model AD-17

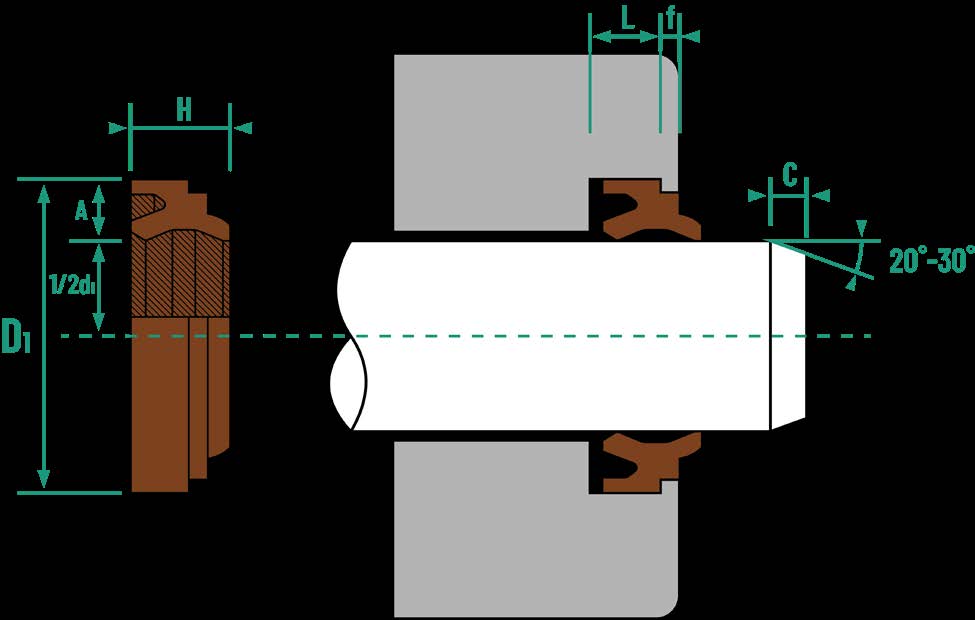

Wiper Seal Model AD-17

Material: NBR, FKM, 80 SHORE A

Working Temp: -30˚C ~ +220˚C

Speed: ≤ 2m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 48 sizes
12 × 20.6 × 7/5.3
14 × 22.6 × 7/5.3
20 × 28.6 × 7/5.3
22 × 30.6 × 7/5.3
25 × 33.6 × 7/5.3
28 × 36.6 × 7/5.3
30 × 38.6 × 7/5.3
35 × 43.6 × 7/5.3
32 × 40.6 × 7/5.3
36 × 44.6 × 7/5.3
40 × 48.6 × 7/5.3
42 × 50.6 × 7/5.3
45 × 55.6 × 7/5.3
50 × 60.6 × 7/5.3
55 × 65.6 × 7/5.3
56 × 66.6 × 7/5.3
60 × 70.6 × 7/5.3
63 × 73.6 × 7/5.3
65 × 75.6 × 7/5.3
70 × 80.6 × 7/5.3
75 × 87.2 × 12/7.2
80 × 92.2 × 12/7.2
85 × 97.2 × 12/7.2
90 × 102.2 × 12/7.2
100 × 112.2 × 12/7.2
110 × 122.2 × 12/7.2
115 × 127.2 × 12/7.2
120 × 132.2 × 12/7.2
125 × 140 × 16/10.2
130 × 145 × 16/10.2
140 × 155 × 16/10.2
150 × 165 × 16/10.2
160 × 175 × 16/10.2
180 × 200 × 18/10.2
190 × 210 × 18/10.2
200 × 220 × 18/10.2
210 × 230 × 18/10.2
220 × 240 × 18/10.2
230 × 250 × 18/10.2
240 × 260 × 18/10.2
250 × 270 × 18/10.2
260 × 280 × 18/10.2
270 × 290 × 18/10.2
280 × 300 × 18/10.2
300 × 320 × 18/10.2
320 × 340 × 18/10.2
360 × 380 × 18/10.2
410 × 430 × 18/10.2

Model SCK

Wiper Seal Model SCK

Material: NBR, FKM, 80 SHORE A

Working Temp: -30˚C ~ +220˚C

Speed: ≤ 2m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 53 sizes
10 × 18 × 4/8
12 × 20 × 4/8
14 × 22 × 4/8
15 × 23 × 4/8
16 × 24 × 4/8
18 × 26 × 4/8
20 × 28 × 4/8
25 × 33 × 4/8
22 × 30 × 4/8
28 × 36 × 4/8
30 × 38 × 4/8
32 × 40 × 7/8
35 × 43 × 4/8
36 × 44 × 4/8
38 × 46 × 4/8
40 × 48 × 4/8
42 × 50 × 4/8
45 × 53 × 4/8
50 × 58 × 4/8
55 × 63 × 4/8
56 × 64 × 4/8
60 × 68 × 4/8
63 × 71 × 4/8
65 × 73 × 4/8
70 × 78 × 4/8
75 × 83 × 4/8
80 × 88 × 4/8
85 × 93 × 4/8
90 × 98 × 4/8
100 × 108 × 4/8
105 × 117 × 5.5/10
110 × 122 × 5.5/10
115 × 127 × 5.5/10
120 × 132 × 5.5/10
125 × 137 × 5.5/10
130 × 142 × 5.5/10
135 × 147 × 5.5/10
140 × 152 × 5.5
145 × 157 × 5.5/10
150 × 162 × 5.5/10
155 × 167 × 5.5/10
160 × 172 × 5.5/10
165 × 177 × 5.5/10
170 × 182 × 5.5/10
180 × 192 × 5.5/10
185 × 197 × 5.5
190 × 202 × 5.5/10
200 × 212 × 5.5/10
220 × 235 × 9.5/13
250 × 265 × 9.5/13
280 × 295 × 9.5/13
300 × 315 × 9.5/13
360 × 375 × 9.5/13

Model A5

Wiper Seal Model A5

Material: NBR, FKM, 80 SHORE A

Working Temp: -20˚C ~ +220˚C

Speed:

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 0 sizes

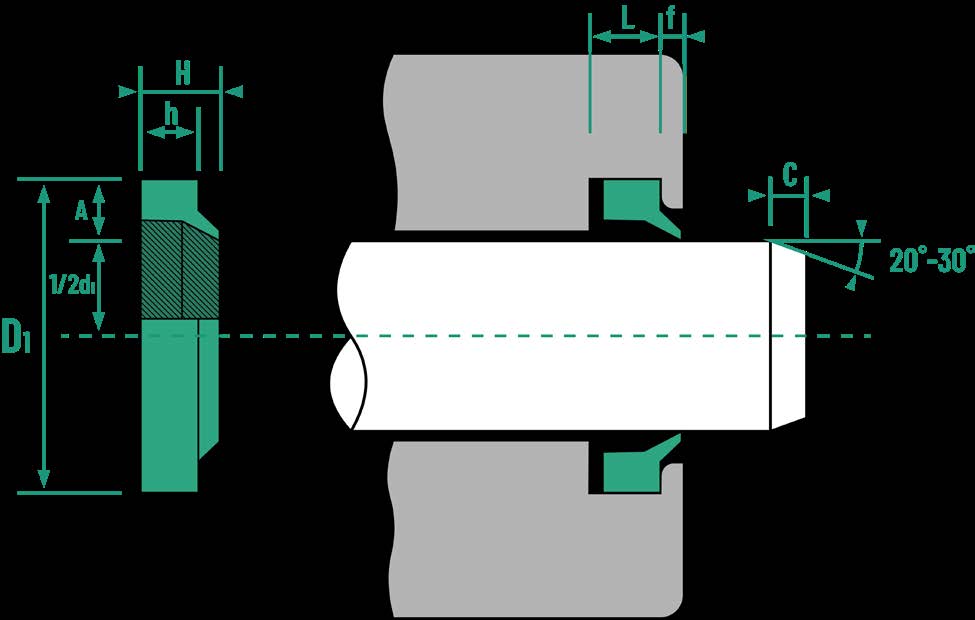

Model A8

Wiper Seal Model A8

Material: TPU, 90 SHORE A

Working Temp: -20˚C ~ +220˚C

Speed: ≤ 2m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 0 sizes

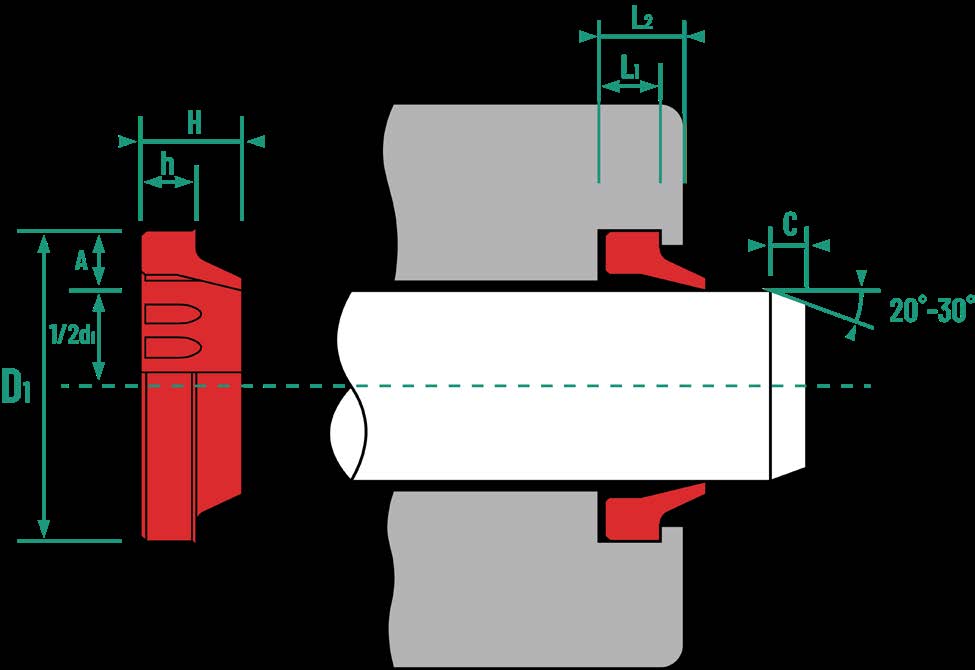

Model H38

Wiper Seal Model H38

Material: TPU, 90 SHORE A

Working Temp: -20˚C ~ +220˚C

Speed: ≤ 2m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 0 sizes

Model GHP

Wiper Seal Model GHP

Material: TPU, 90 SHORE A

Working Temp: -40˚C ~ +120˚C

Speed: ≤ 4m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 0 sizes

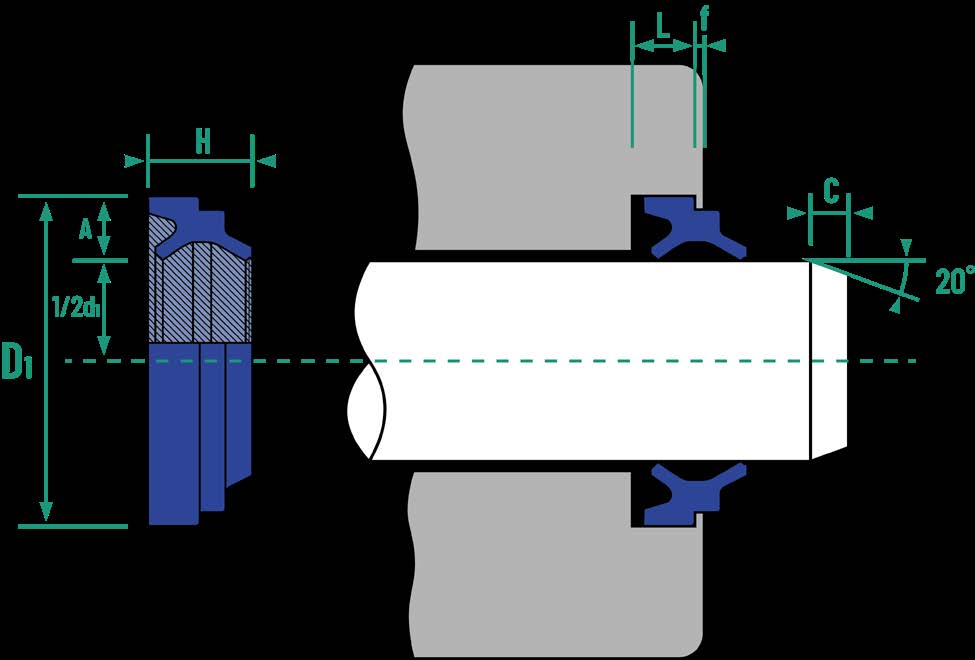

Model GPW

Wiper Seal Model GPW

Material: TPU, 90 SHORE A

Working Temp: -30˚C ~ +80˚C

Speed:

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 24 sizes
18 × 26 × 4/7
20 × 28 × 4/7
25 × 32 × 4/7
25 × 33 × 4/7
28 × 36 × 4/7
30 × 38 × 4/7
35 × 43 × 4/7
45 × 53 × 4/7
40 × 48 × 4/7
50 × 58 × 4/7
30 × 38 × 4/8
55 × 63 × 4/7
56 × 64 × 4/7
60 × 68 × 4/7
63 × 71 × 4/7
65 × 73 × 4/7
68 × 76 × 4/7
70 × 78 × 4/7
75 × 83 × 4/7
80 × 88 × 4/7
85 × 93 × 4/7
90 × 98 × 4/7
95 × 103 × 4/7
100 × 108 × 4/7

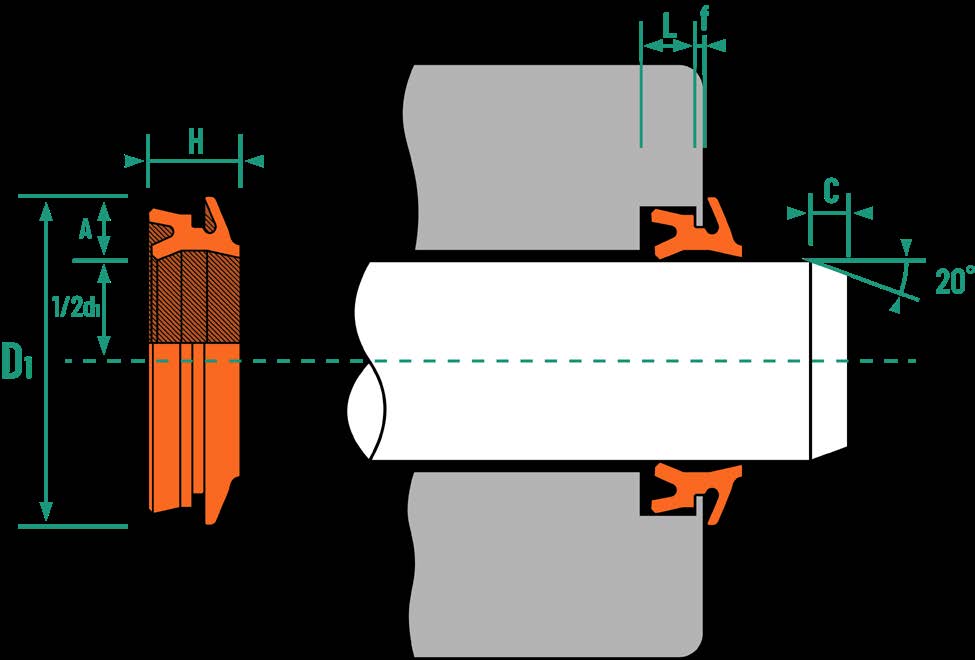

Model H844

Wiper Seal Model H844

Material: TPU, 90 SHORE A

Working Temp: -40˚C ~ +110˚C

Speed:

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 25 sizes
18 × 26 × 4/6/8
20 × 28 × 4/6/8
22 × 30 × 4/6/8
25 × 33 × 4/6/8
28 × 36 × 4/6/8
30 × 38 × 4/6/8
32 × 40 × 4/6/8
36 × 44 × 4/6/8
35 × 43 × 4/6/8
38 × 46 × 4/6/8
40 × 48 × 4/6/8
45 × 53 × 4/6/8
50 × 58 × 4/6/8
55 × 63 × 4/6/8
56 × 64 × 4/6/8
60 × 68 × 4/6/8
63 × 71 × 4/6/8
65 × 73 × 4/6/8
70 × 78 × 4/6/8
75 × 83 × 4/6/8
80 × 88 × 4/6/8
85 × 93 × 4/6/8
90 × 98 × 4/6/8
95 × 107 × 5/8.2/11
100 × 108 × 4/6/8

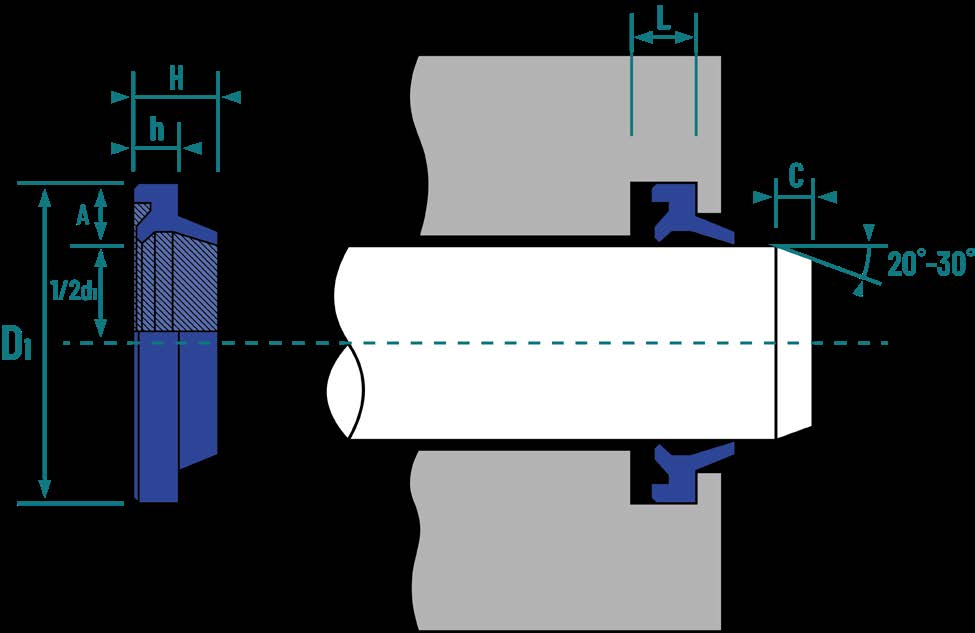

Model CK

Wiper Seal Model CK

Material: TPU, 90 SHORE A

Working Temp: -45˚C ~ +110˚C

Speed: ≤ 4m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 12 sizes
30 × 38 × 5/9
35 × 43 × 5/9
40 × 48 × 5/9
45 × 53 × 5/9
50 × 58 × 5/9
60 × 70 × 6/11.5
65 × 75 × 6/11.5
80 × 90 × 6/11.5
75 × 85 × 6/11.5
90 × 100 × 6/11.5
104.8 × 119.8 × 9.5/16.7
105 × 120 × 9.5/17

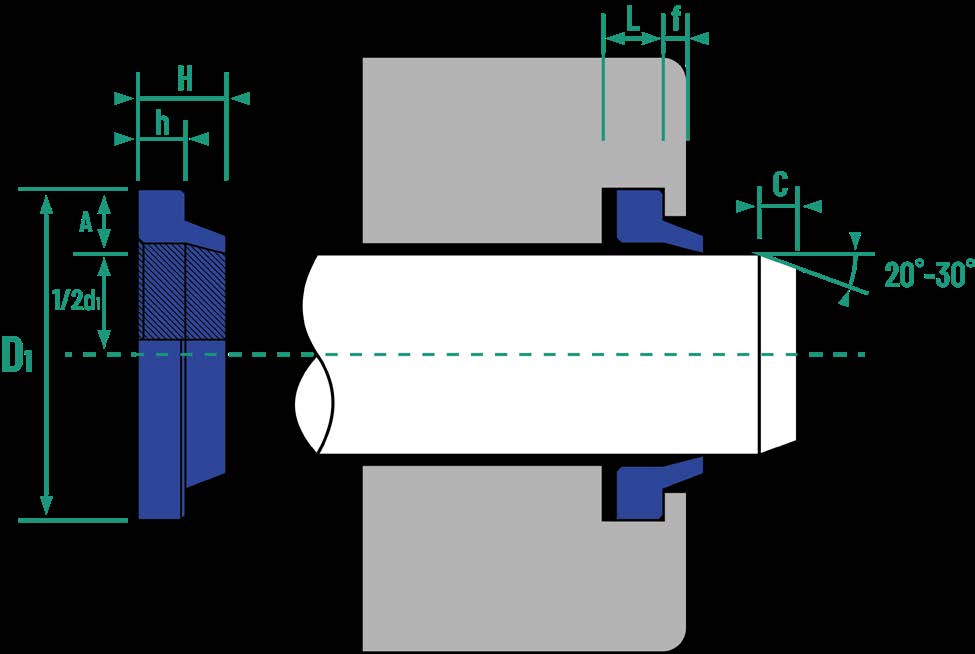

Model JB

Wiper Seal Model JB

Material: TPU, 90-95 SHORE A

Working Temp: -30˚C ~ +100˚C

Speed: ≤ 1m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 18 sizes
28 × 40 × 5/9
32 × 43.8 × 5/9
35 × 46.8 × 5/9
36 × 47.8 × 5/9
40 × 51.8 × 5/9
40 × 52 × 5/9
45 × 57 × 5/9
55 × 68.6 × 6/11
50 × 62 × 5/9
56 × 69.6 × 6/11
60 × 73.6 × 6/11
63 × 76.6 × 6/11
70 × 83.6 × 6/11
80 × 93.6 × 6/11
90 × 103.6 × 6/11
100 × 113.6 × 6/11
110 × 125.4 × 7/13
140 × 159.4 × 7/13

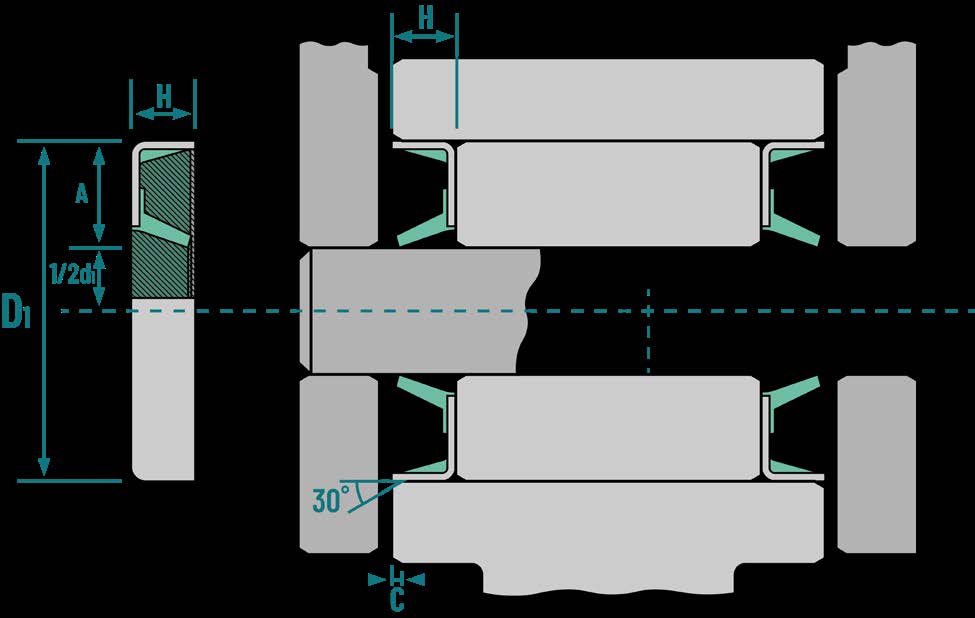

Model DLI-1

Wiper Seal Model DLI-1

Material: TPU, 93 SHORE A

Working Temp: -35˚C ~ +100˚C

Speed: ≤ 1m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 58 sizes
18 × 24 × 2.5/5
18 × 26 × 2.5/5
19 × 25.5 × 2.5/4.6
20 × 28 × 2.5/5
22 × 30 × 2.5/5
25 × 33 × 2.5/5
28 × 36 × 2.5/5
32 × 41 × 3/6
30 × 38 × 2.5/5
35 × 44 × 3/6
36 × 45 × 3/6
38 × 46 × 3/6
40 × 49 × 3/6
45 × 54 × 3/6
50 × 59 × 3/6
55 × 64 × 3/6
58 × 66 × 3/6
60 × 69 × 3/6
63 × 72 × 3/6
68 × 76 × 3/6
70 × 82 × 4/8
75 × 87 × 4/8
80 × 92 × 4/8
85 × 97 × 4/8
90 × 102 × 4/8
95 × 107 × 4/8
100 × 112 × 4/8
105 × 117 × 4/8
110 × 122 × 4/8
115 × 127 × 4/8
120 × 132 × 4/8
125 × 140 × 5/10
130 × 145 × 5/10
135 × 150 × 5/10
140 × 155 × 5/10
145 × 160 × 5/10
150 × 165 × 5/10
155 × 170 × 5/10
160 × 175 × 5/10
165 × 180 × 5/10
170 × 185 × 5/10
175 × 190 × 5/10
180 × 195 × 5/10
200 × 218 × 6/12
210 × 228 × 6/12
220 × 238 × 6/12
230 × 248 × 6/12
240 × 258 × 6/12
250 × 268 × 6/12
260 × 278 × 6/12
270 × 288 × 6/12
280 × 298 × 6/12
290 × 308 × 6/12
300 × 318 × 6/12
320 × 338 × 6/12
360 × 378 × 6/12
370 × 388 × 6/12
380 × 398 × 6/12

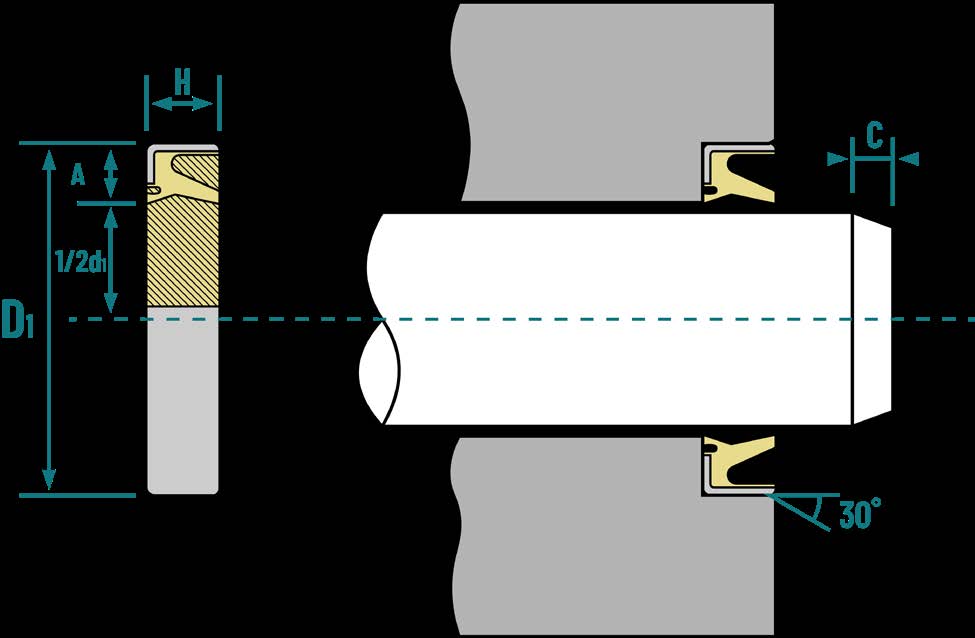

Model DWI

Wiper Seal Model DWI

Material: TPU+SPCC, 95 SHORE A

Working Temp: -35˚C ~ +100˚C

Speed:

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 178 sizes
30 × 38 × 4
30 × 40 × 4
35 × 45 × 4
35 × 45 × 5
38 × 50 × 4
40 × 50 × 4
40 × 50 × 5
40 × 55 × 4
40 × 50 × 8
40 × 55 × 8
45 × 55 × 4
45 × 55 × 5
45 × 55 × 8
45 × 60 × 4
45 × 60 × 5
50 × 60 × 4
50 × 60 × 5
50 × 60 × 8
50 × 63 × 4
50 × 63 × 6
50 × 65 × 4
50 × 65 × 5
50 × 65 × 8
55 × 65 × 4
55 × 65 × 8
55 × 68 × 4
55 × 70 × 4
55 × 70 × 8
60 × 70 × 4
60 × 70 × 5
60 × 70 × 7
60 × 75 × 4
60 × 75 × 5
60 × 75 × 6
60 × 75 × 8
65 × 75 × 4
65 × 80 × 4
65 × 80 × 5
65 × 80 × 6
65 × 80 × 8
65 × 85 × 4
65 × 85 × 6
65 × 85 × 8
70 × 80 × 4
70 × 80 × 6
70 × 80 × 7
70 × 85 × 4
70 × 85 × 5
70 × 85 × 6
70 × 85 × 7
70 × 85 × 8
70 × 86 × 6
71 × 86 × 5
75 × 85 × 7
75 × 90 × 4
75 × 90 × 5
75 × 90 × 6
75 × 90 × 7
75 × 90 × 8
80 × 90 × 4
80 × 90 × 5
80 × 90 × 6
80 × 90 × 7
80 × 90 × 8
80 × 93 × 7
80 × 93 × 8
80 × 95 × 4
80 × 95 × 5
80 × 95 × 6
80 × 95 × 7
80 × 95 × 8
80 × 96 × 4
80 × 96 × 6
80 × 100 × 4
80 × 100 × 5
80 × 100 × 6
80 × 100 × 8
80 × 100 × 10
80 × 105 × 6
80 × 110 × 5
80 × 110 × 6
85 × 95 × 7
85 × 100 × 4
85 × 100 × 6
85 × 100 × 7
85 × 100 × 8
90 × 100 × 4
90 × 100 × 5
90 × 100 × 6
90 × 100 × 7
90 × 100 × 8
90 × 104 × 8
90 × 105 × 4
90 × 105 × 5
90 × 105 × 6
90 × 105 × 7
90 × 105 × 8
90 × 106 × 4
90 × 106 × 6
90 × 106 × 8
90 × 110 × 4
90 × 110 × 5
90 × 110 × 6
90 × 110 × 7
90 × 110 × 8
90 × 110 × 10
90 × 115 × 6
90 × 116 × 5
90 × 120 × 5
93 × 106 × 8
95 × 110 × 4
95 × 110 × 6
95 × 110 × 7
95 × 110 × 8
100 × 110 × 7
100 × 115 × 4
100 × 115 × 5
100 × 115 × 6
100 × 115 × 7
100 × 115 × 8
100 × 116 × 6
100 × 116 × 8
100 × 120 × 4
100 × 120 × 8
100 × 120 × 10
100 × 130 × 8
105 × 120 × 4
105 × 120 × 6
105 × 120 × 7
105 × 120 × 8
110 × 120 × 7
110 × 125 × 4
110 × 125 × 5
110 × 125 × 6
110 × 125 × 7
110 × 125 × 8
110 × 125 × 9
110 × 130 × 8
110 × 130 × 9
110 × 130 × 10
110 × 135 × 4
110 × 135 × 8
110 × 140 × 8
115 × 130 × 4
115 × 130 × 8
115 × 130 × 10
115 × 135 × 8
120 × 130 × 7
120 × 135 × 8
120 × 140 × 8
120 × 140 × 10
125 × 135 × 8
125 × 140 × 8
125 × 145 × 8
130 × 140 × 7
130 × 150 × 8
130 × 150 × 10
130 × 155 × 8
130 × 160 × 8
140 × 160 × 8
140 × 160 × 10
140 × 165 × 8
140 × 165 × 10
140 × 170 × 8
140 × 175 × 8
150 × 170 × 8
150 × 170 × 10
150 × 180 × 8
150 × 180 × 10
160 × 180 × 8
160 × 180 × 10
160 × 190 × 8
160 × 190 × 10
170 × 190 × 8
170 × 200 × 8
170 × 200 × 10
180 × 200 × 8
190 × 210 × 8

Model JX

Wiper Seal Model JX

Material: TPU+SPCC, 95 SHORE A

Working Temp: -100˚C ~ +150˚C

Speed: ≤ 4m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 19 sizes
38.1 × 57.2 × 11
44.45 × 62.1 × 11
57.15 × 76.2 × 11
83.5 × 108.2 × 14
50.8 × 68.5 × 11
88.9 × 114.3 × 14
97.1 × 120.8 × 14
69.85 × 95.5 × 12.7
63.5 × 82.7 × 11
76.2 × 102 × 12.7
31.75 × 57.15 × 10.3
53.98 × 73.03 × 11
55 × 73 × 11
60.33 × 79.38 × 10
65 × 84 × 11
47.63 × 60.33 × 8
50 × 75 × 12
55 × 74 × 11
66.68 × 85.73 × 8

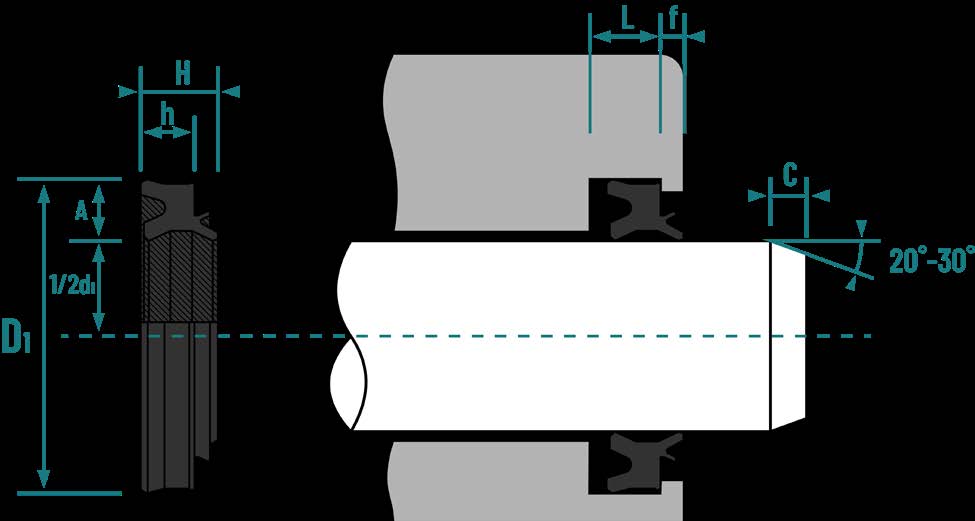

Model JX

Wiper Seal Model JX

Material: NBR, 80 SHORE A

Working Temp: -45˚C ~ +100˚C

Speed: ≤ 1m/s

* Please verify operating pressure and lubricant compatibility according to engineering manual.
View Size Chart (Dimensions) (d × D × H or d × D) 25 sizes
71 × 81 × 6/10
80 × 90 × 5.5/8.5
88 × 98 × 6/10
90 × 102 × 6.3/10
100 × 112 × 6.5/9
100 × 115 × 6.5/9
110 × 120 × 5.5/10
110 × 120 × 6.3/10
110 × 122 × 6.3/10
120 × 135 × 6.5/10
125 × 140 × 6.5/9
129 × 140 × 6.3/10
130 × 142 × 6.3/10
135 × 145 × 5.5/10
145 × 160 × 6.5/10
150 × 162 × 6.3/10
150 × 165 × 6.5/9
152 × 165 × 6.3/10
160 × 170 × 5.5/10
170 × 185 × 6.5/10
172 × 184 × 6.3/10
175 × 187 × 6.3/10
180 × 195 × 6.5/9
196 × 208 × 6.3/10
200 × 212 × 6.3/10

Frequently Asked Questions (FAQ) - Wiper & Dust Seals

What is a Wiper Seal (Dust / Scraper Seal) and what is its role?
A wiper seal serves as the primary barrier on hydraulic and pneumatic cylinder rods, actively wiping away external dirt, dust, mud, and moisture to prevent particulate contamination from scoring cylinder walls and damaging primary internal seals.
What is the difference between single-lip and double-lip wiper seals?
A single-lip wiper solely scrapes away external contaminants. A double-lip wiper features a secondary inner lip that also scrapes away any residual fluid film on the extending rod back into the cylinder, minimizing fluid loss and maximizing sealing efficiency.
Should I choose NBR or Polyurethane (PU) for wiper seals?
Polyurethane (PU) provides significantly higher tear strength, tensile modulus, and abrasion resistance, making it ideal for heavy equipment and earthmoving machinery exposed to mud and rock dust. NBR is suitable for lighter industrial automation and pneumatic cylinders.
Are standard models like DHS, DKB, and LBI available from SEALTHAI?
Yes, SEALTHAI stocks all industry-standard wiper seal profiles including DHS, DKB, LBI, JA, PDU, and FA. Search sizes directly on sealthai.com or contact our engineers on LINE @sealthai for express dispatch.
